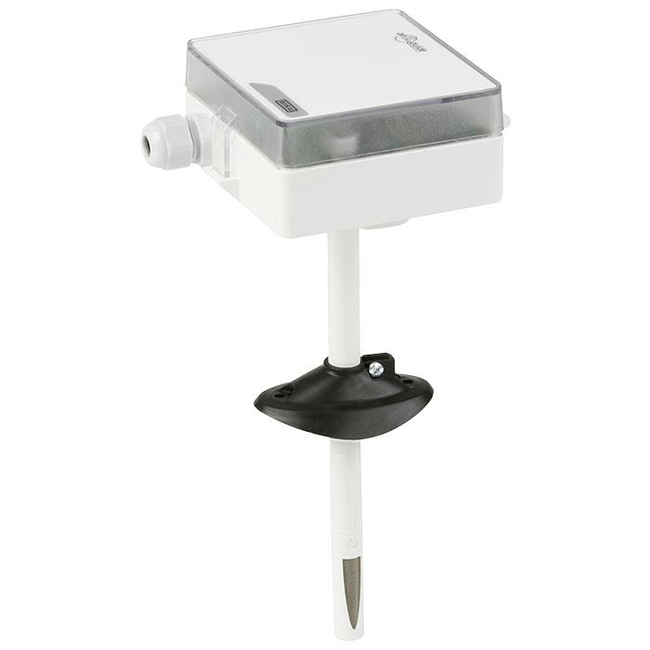

Ventilation Duct Sensor - A2G-70
Brand: WIKA Alexander Wiegand SE & Co. KGFor relative humidity and temperature.
Features- Easy installation
- Direct assembly into the process
- Compact and robust design
- Comes standard with mounting flange
Specifications
CE Conformity
- 2004/108/EG Electromagnetic compatibility
Product Safety
- 2001/95/EG Product Safety
EMC
- EN 607301: 2002
Supply Voltage
- DC 15 … 24 V / AC 24 V ± 10 %
Scale Range / Measuring Range
- Humidity: 0 … 100 % rH
- Temperature: -20 … +80° C
Power Consumption
- 0.5 W / 1.7 VA
Transmitter Outputs
- Humidity: DC 0 … 10 V, load: min. 5 kOhm
- Temperature: DC 0 … 10 V, load: min. 5 kOhm
Ingress Protection
- NEMA 4 (IP65 per EN 60529 / IEC 592 (Connecting Head))
Accuracy
- Humidity: ± 3 % between 20 … 80 % rH
- Temperature: ± 1.0 % between +5 … +45° C
- For measuring relative humidity and temperature of gaseous media in heating, cooling and air-conditioning systems
- Designed for PLC’s and other control and display panels
