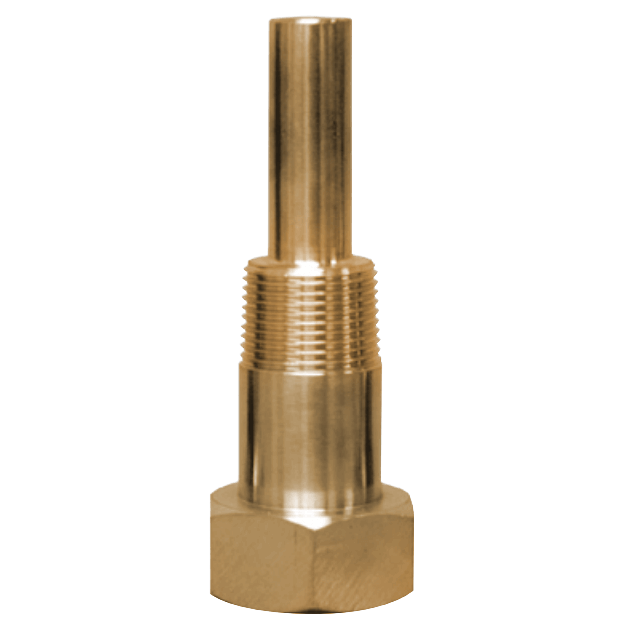

TIW/TIW-LF Industrial Thermowell
Brand: Winters Instruments
Features
- Designed for use with all 9” (228mm) industrial thermometers to create a “sealed system”
- Allows the easy replacement of thermometers without the need to shut down or drain the system
- RoHS compliant (304 SS and 316 SS thermowells only)
- CAN/CGSB-14.4-M88 Compliant
- CRN registered
Specifications
Brand
Approvals & Certifications
- CRN
- RoHS Applies Only to 304 Stainless Steel & 316 Stainless Steel Thermowells
Bore Size
- 7/16” (11.11 mm)
Cap Material
- Cap & Chain: Brass
- Cap & Chain: Stainless Steel (SST)
Insertion 'U' Length
- 3.5” with Lagging Stem Length: 1.75” (44 mm)
- 3.5” without Lagging & 6” with Lagging Stem Length: 2.5” (63 mm)
- 6” without Lagging Stem Length: 5” (127 mm)
Instrument Connection
- Thermometer: 1-1/4” UNF
Lagging Extension
- 3.5” with Lagging: 1” (25 mm)
- 6” with Lagging: 2.5” (63 mm)
Length
- Overall Length for 3.5” Stem: 4.25” (108 mm)
- Overall Length for 6” Stem: 6.75” (172 mm)
Materials of Construction
- Hastelloy C
- Inconel
- Monel
- Titanium
- TIW & TIW-LF (Lead Free): Brass
- TIW: AISI 304 Stainless Steel (SST)
- TIW: AISI 316 Stainless Steel (SST)
NPT Connection
- 1/2” NPT Male
- 3/4” NPT Male
Stem Length
- 3.5” (89.54 mm) without or with Lagging
- 6” (152.3 mm) without or with Lagging
Thermowell
- Stepped
- Straight
- HVAC Systems
- Pipes
- Chill Water & Hot Water Lines
- Lead Free Version for Potable Water System
