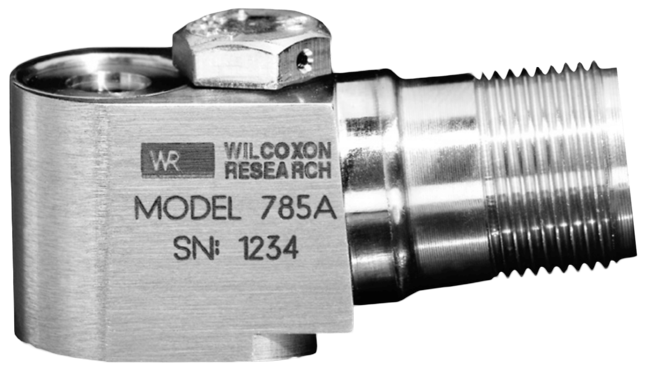

Model 785A Low Profile Industrial Accelerometer
Brand: Wilcoxon Sensing TechnologiesFeatures:
- Corrosion resistant
- Hermetically sealed
- Ground isolated
- ESD protection
- Reverse wiring protection
- RFI protection
Specifications
Applications
- Conveyors & Drives
- General-purpose
- Moderate Industrial Environment
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Cabling (J10 / J9T2A)
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- Corrosion-Proof
Frequency
- Frequency Response (± 10 %): 2 to 8,000 Hz
- Frequency Response (± 3 dB): 1 to 12,000 Hz
- Resonance Frequency, Mounted, Min.: 30 kHz
Mounting
- 1/4-28 Captive Hex Head Screw with 0.046" Diameter Safety Wire Hole
Noise
- Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 1,260 µg
- Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 11 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 6 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 80 G Peak
RFI/EMI Protection
- RFI Protection
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Max.
- Sensitivity, ± 10 %, 25° C (77° F): 100 mV/g
- Transverse Sensitivity: Max. 5 % of axial
Shock
- Shock Limit, Min. 5,000 G
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G
Voltage
- Bias Output Voltage, Nominal: 12 Vdc
