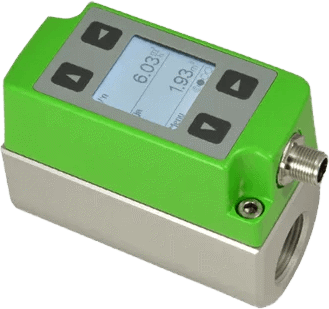

The EE741 In-line Flow Meter
Brand: E + E Elektronik GES.M.B.HThe EE741 in-line flow meter can be easily adapted for any measuring task. It is dedicated for accurate metering and monitoring of compressed air and technical gases in DN 15 to DN50 pipes.
The thermal measuring principle and the well proven E+E hot film sensor element lead to best long-term stability and fast response time.
Outstanding measuring accuracy, even in the lower measuring range, is achieved by an application-specific multi-point factory adjustment performed at 7 bar (102 psi).
This allows reliable leak detection and corresponding energy savings. The construction of the EE741 flow meter is optimised for easy installation and maintenance.
The EE741 flow sensor consists of a sensing unit (Item 1) and a gauge mounting block (Item 2).
Features- Modular design
- Removal without dissasembling the pipework
- Application-specific adjustment under pressure
- Exceptional price/performance ratio
- Analogue, pluse and switching output
- Modbus RTU and M-Bus
- Integrated consumption meter
Specifications
Measured Values
- standardized volumetric flow, mass flow, standardised flow, temperature, consumption
Measuring Range - Flow
- DN 15: 0.2 - 76.3 Nm³/h (0.12 - 44.88 SCFM)
- DN 20: 0.4 - 135.6 Nm³/h (0.24 - 79.77 SCFM)
- DN 25: 0.6 - 212 Nm³/h (0.36 - 124.71 SCFM)
Accuracy - Flow (*Measured Value)
- ± (3 % of mv* + 0.3 % of full scale)
Accuracy - Temperature
- ± 0.7° C (1.26° F)
Pipe Diameter
- DN 15 / DN 20 / DN 25
- DN 32 / DN 40 / DN 50
Measuring Range - Temperature
- -20 to 60° C (-4 to 140° F)
Outputs
- 0/4-20 mA, Pulse, Switch, Modbus RTU, M-Bus or IO-Link
