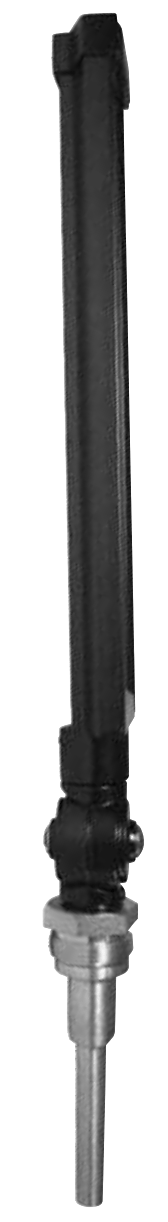

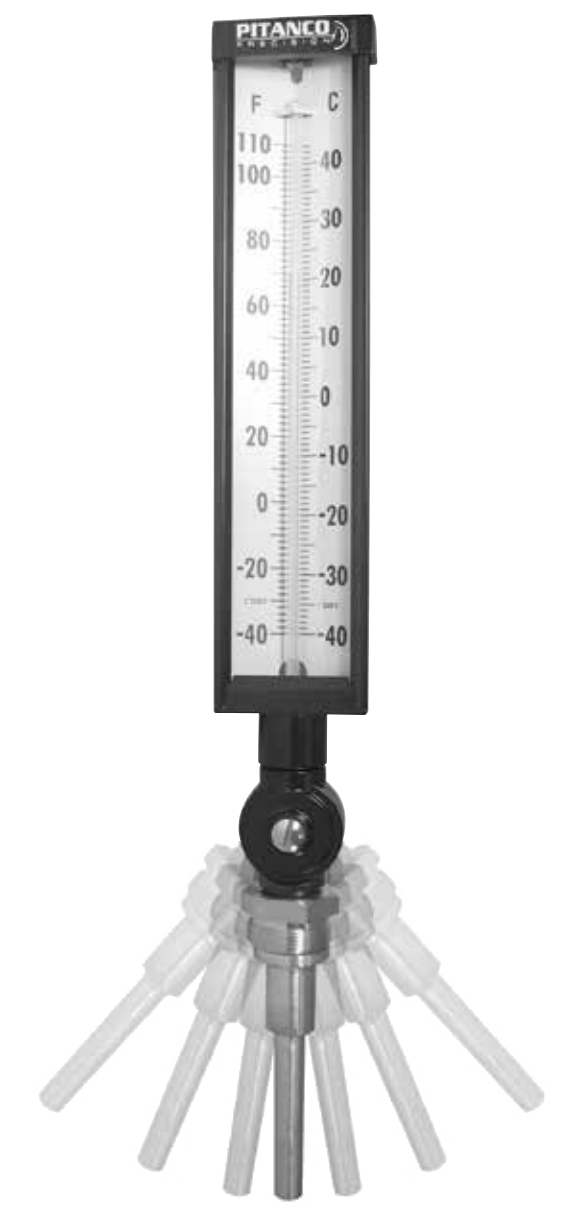

Model ITA900/ITA900BR Multi-Angle Industrial 9" Thermostat
Brand: Pitanco Precision
For use in commercial, institutional and industrial buildings, as well as hospitals. Commonly used on hot or chilled water lines, boilers, condensers, etc.
Specifications
Brand
Case
- 9” (228 mm) Cast Aluminum, Black Epoxy Finish
Lens
- Reinforced Glass
Stem
- 3-1/2” (90 mm) in Length, Aluminum, Adjustable Angle with 360° Rotation
- 6” (150 mm) in Length, Aluminum, Adjustable Angle with 360° Rotation
Connection
- 1-1/4”-18 UNF, 3/4” NPTM Swivel Nut, Fits on Well
Scale
- White Aluminum, Dual Scale °F and °C, Black Markings
Filling Type
- Organic Blue, (550° F) Max.
Well
- Brass
- 304 Stainless Steel
- 316 Stainless Steel
Accuracy
- ASME B40.200 (B40.8), Grade A ± 1 % CAN/CGSB - 14.4
