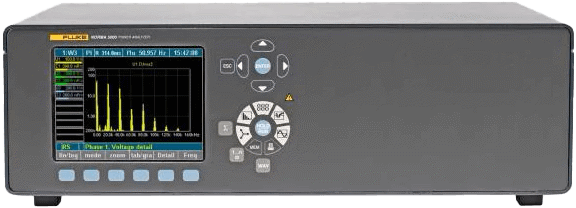

Fluke Norma 5000 Power Analyzers

Brand: Fluke Corporation
Add Product to My Catalog

The compact Fluke Norma Series Power Analyzers provide the latest measurement technology to assist engineers with the development and testing of motors, inverters, lighting, power supplies, transformers and automotive components.

Based on a patented, high-bandwidth architecture, the instruments deliver high-precision measurements of single or three-phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values.

The Fluke Norma 5000 Six-Phase Power Analyzer is a rugged, high-precision analyzer providing unmatched price performance for easy and reliable use in the field, or as a bench unit in laboratories and on test benches.
Features
  • Six-phase power analyzer for developing frequency converters and lighting equipment
  • Features the highest bandwidth on the market
  • Measures voltage, current, and power harmonics up to the 40th harmonic
  • Features a simple user interface to ensure easy, intuitive operation
  • Offers a variety of standard configurations so users can choose the exact functionality required for their application
  • Performs simultaneous parallel acquisition of all phases to allow accurate viewing of dynamic events on all phases at exactly the same point in time
  • Compact design makes it easy to carry and saves working space.
  • Provides galvanically-isolated inputs to avoid short circuits in all applications
  • Includes FFT analysis, vector diagram, and digital oscilloscope (DSO) mode in the base unit for complete analysis capability
  • Offers user-selectable average time—from 15 ms up to 3600 s—for dynamic measurements
  • Includes 4 MB on-board memory (expandable to 128 MB) for storing measured values
  • Allows fast and easy connection to a PC; RS232 and USB included as standard; optional IEEE488, Ethernet, or USB2.0
  • Provides PI1 process interface to measure torque and speed with external sensors, plus four analog outputs for easy use on motor and drive applications
  • Features 341 kHz or 1 MHz sample rates for detailed signal analysis
  • Provides bandwidth from DC to 3 MHz or DC to 10 MHz for reliable measurement precision.
  • Includes Fluke NormaView PC software for data download, analysis, and reporting

1 - 12 of 30 Part Numbers
3108620
3108620
Fluke-Norma 5000, three phase with 3xPP50 power phase input modules
3108635
3108635
Fluke-Norma 5000, three phase with 3xPP50 power phase input modules with IEEE488 / Ethernet interface
3108647
3108647
Fluke-Norma 5000, three phase with 3xPP50 power phase input modules with IEEE488 / Ethernet interface and analog / digital output channels
3108658
3108658
Fluke-Norma 5000, three phase with 3xPP54 power phase input modules
3108664
3108664
Fluke-Norma 5000, three phase with 3xPP54 power phase input modules with IEEE488 / Ethernet interface
3108673
3108673
Fluke-Norma 5000, three phase with 3xPP54 power phase input modules with IEEE488 / Ethernet interface and analog / digital output channels
3108686
3108686
Fluke-Norma 5000, three phase with 3xPP64 power phase input modules
3108699
3108699
Fluke-Norma 5000, three phase with 3xPP64 power phase input modules with IEEE488 / Ethernet interface
3108702
3108702
Fluke-Norma 5000, three phase with 3xPP64 power phase input modules with IEEE488 / Ethernet interface and analog / digital output channels
3108716
3108716
Fluke-Norma 5000, three phase with 4xPP54 power phase input modules
3108725
3108725
Fluke-Norma 5000, three phase with 4xPP54 power phase input modules with IEEE488 / Ethernet interface and analog / digital output channels
3108733
3108733
Fluke-Norma 5000, three phase with 6xPP54 power phase input modules with IEEE488 / Ethernet interface
1 - 12 of 30 Part Numbers

Specifications

Brand

Number of Phases

  • 1 to 3

Bandwidth

  • DC to 3 MHz or DC to 10 MHz depending on input module

Basic Accuracy

  • 0.2 %, 0.1 % or 0.03 % depending on input modules

Sampling Rate

  • 0.33 MHz or 1 MHz depending on input modules

Voltage Input Range

  • 0.3 V to 1000 V

Direct Current Input Range

  • 0.03 mA to 20 A depending on input module

Memory

  • COnfigurations: 4MB
  • Settings: 0.5MB

Working Temperature Range

  • 5° C to 35° C
  • 41° F to 95° F

Housing Material

  • Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.

Measuring Inputs

  • Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.

Frequency Range

  • DC and 0.2 Hz to sample rate

Accuracy

  • ± 0.01 % of measured value

Interface

  • RS-232 interface for upload of firmware and data exchange with the PC.
  • IEEE 488.2 / 1 MBit/s
  • Ethernet / 10 MBit/s or 100 Mbit/s

Electrical Safety

  • EN 61010-1 / 2nd Edition 1000 V CAT II (600 V CAT III)
  • Degree of pollution 2, safety Class I
  • EN 61558 for transformer
  • EN 61010-2-031/032 for accessories

Maximum Inputs

  • For voltage inputs Measurement range 1000 Veff, 2 kVpeak
  • For current inputs Measurement range 10 Aeff, 20 Apeak

Electromagnetic Susceptibility

  • Emission: IEC 61326-1, EN 50081-1, EN 55011 Class B
  • Immunity: IEC 61326-1 / Annex A (industrial sector), EN 50082-1

  • Electric Motors And Inverter Drive Systems
  • Inverter Drive System
  • Lighting Systems
  • Transformers
  • Automotive
