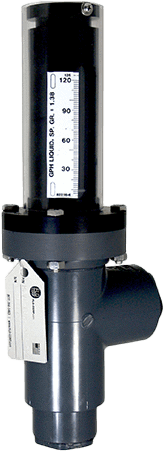

HawkVFlo HFVC PVC & CPVC Corrosive Resistant Process VA Flow Meter
Brand: Hawk Measurement SystemsThe HawkVFlo HFVC PVC & CPVC flow meters are simple, accurate variable area meters and resistant to many acids, alkalis, salt solutions, and other corrosives. These meters have an excellent tolerance to suspended solids and measure flow to one percent accuracy.
Unlike tapered tube rotameters, the HawkVFlo HFVC flow meters have an indicator disk in close proximity to the edge of the sight tube for visibility even in many dirty fluids. Alternatively, magnetic indication is available for accurate reading regardless of media. These meters can be supplied with the HFT2 2-Wire Transmitters for flow rate and total.
Features- Heavy bodied meters for corrosives and high purity fluids
- Ideal for acids & caustics, deionized water, plating solutions, water treatment & corrosive gases
- All plastic wetted components for maximum corrosion resistance
- Extended flow ranges averaging 30 to 1
- Disassembles in less than a minute without removing the meter from the pipeline
Specifications
Brand
Repeatability
- ± 1/2 % of indicated Flow Rate
Rangeability
- 30 to 1 Average
Accuracy
- ± 1 % of 100 % Flow Rate
Pressure Rating
- Up to 150 psig for Flanged Models
- 300 psig, Depending on Meter Type, Temperature and Service Conditions
Temperature Rating
- Up to 212° F
Material of Construction
- PVC on PVC
- CPVC & Polysulfone
O-ring Material
- Buna N Standard
- Viton, Ethylene-Propylene (EPR), Silicone, Neoprene, Kalrez and Teflon Optional
Process Temperature
- -20° to 240° F (-29° to 116° C)
Ambient Temperature
- -20° to 158° F (-29° to 70° C)
Power Requirement
- 0.5 Vdc Output 10-30 Vdc @ 3-Wire
- 0-10 Vdc Output 12-30 Vdc @ 3-Wire
- 4-20 mA Output Loop-powered, 12-30 Vdc - 2-Wire
Resolution
- 1:4000
Enclosure Rating
- NEMA 4 (IP67), NEMA 7
- Water Treatment
- Electrogalvanizing & Pickling Lines
- Deionized Water
