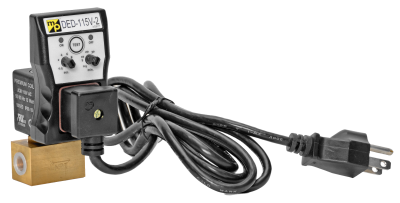

DED Electronically Controlled Warrior Drain 1/4", 3/8" and 1/2"
Brand: Master Pneumatic
Features
- Viton seals in the valve to ensure long life and resistance to synthetic oils.
- O-ring seals on timer cycle adjusters to ensure water resist and sealing IP65
- Fully Automatic - No maintenance.
- Manual TEST switch (micro switch)
- CD tested, UL Recognized.
- Small compact design.
- NPTF port threads; optional BSPP threads.
- Other voltages available
Specifications
Brand
Drain Time
- 0.5 to 10 seconds
Drain Interval
- Adjustable 0.5 to 45 minutes
Current Consumption
- 4 mA Max.
Ambient Temperature
- 35° to 130° F (2° to 54° C)
Media Temperature
- 35° to 190° F (2° to 88° C)
Electrical Connection
- DIN 43650A, ISO 440/6952
Valve Body
- Forged Brass
Pressure Range
- Maximum 230 psig (16 bar)
