Slim Bearings - LSA Series
Brand: Franke GmbHFranke slim bearings of the type LSA convince by their smooth running, extremely compact installation space, simple mounting and favorable price.

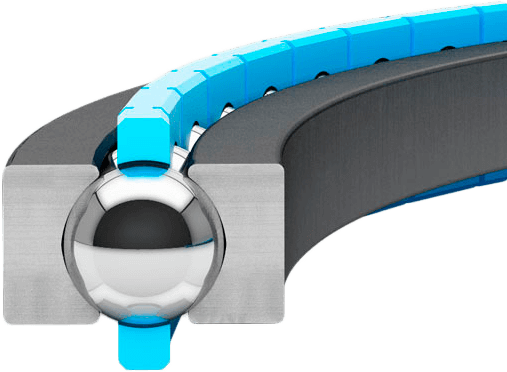

Slim bearings of type LSA consist of an inner and outer race with hardened and profiled raceways and a plastic cage with retained balls.
The rolling elements rest against the raceways at two points each, thus maintaining the 4-point system.
The raceways are split and can therefore be changed elastically in diameter for installation.
FeaturesBearing type
- 2 Race rings with profiled raceways
- Plastic cage with retained balls
Characteristics
- Simple, compact integration, LSA, infinitely variable Ø range
- Cost-effective alternative to standard slim bearings
- Not preloaded bearings
Diameter range
- From 4" to 30"
Specifications
Brand
Material
- Ball Race Rings: 54SiCr6
- Rolling Elements: 100Cr6
- Cage: PA12
Temperature in Use
- -30° to +80° C, Briefly up to +100° C
Circumferential Speed
- Maximum 5 m/s, without Seals Maximum 10 m/s
Lubricant Grease
- Klüber Isoflex Topas NCA52
- Shell Gadus S3 V220
Lubricant Schedule
- See Technical Information
Tolerance Details
- See Technical Information
