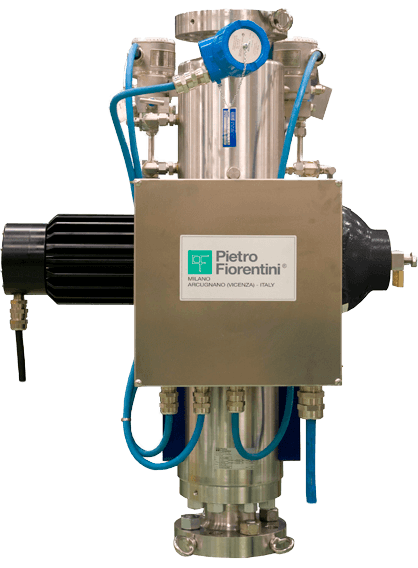

Flowatch HS Multiphase Flow Meter
Brand: Pietro Fiorentini S.p.A.The Pietro Fiorentini Multiphase and Wet Gas Flow Meters are non intrusive, inline systems providing real time measurement of oil, water and gas flow rates in the dispersed phase of the flow avoiding the use of large systems based on phase separation.
In the HS model density is measured by a gamma densitometer with a patented high-speed detector resulting in a higher accuracy.
Features- All flow patterns
- Skid mounted version available
- Smart Calibration on factory
- Designed for safe operations
- Retrievable Venturi
- High repeatability and long term stability
- Radioactive type
- High accuracy due to patented fast gamma densitometer
- Wide size range
- Cross correlation for reliable velocity measurement
- Onshore and offshore installation
Specifications
Brand
Operating Range
- 0 to 100 % Water Cut
- 0 to 98 % Gas Volume Fraction (GVF)
Typical Uncertainty
- Liquid Flow Rate: 0.7 % Full Scale + 1 % Relative
- Water Cut: ± 2.5 % Absolute (GVF ≤ 85 %), ± 4 % Absolute (GVF > 85 %)
- Gas Flow Rate: 1.5 % Full Scale + 1.5 % Relative
Size
- > 0.5”
Design Pressure & Temperature
- Up to 10,000 psi
- Up to 302° F (150° C)
Body Material
- AISI316
- Duplex
- Inconel 625
Electrical Specifications
- ATEX/IECEx Certification EX ia IIB T4 Ga
