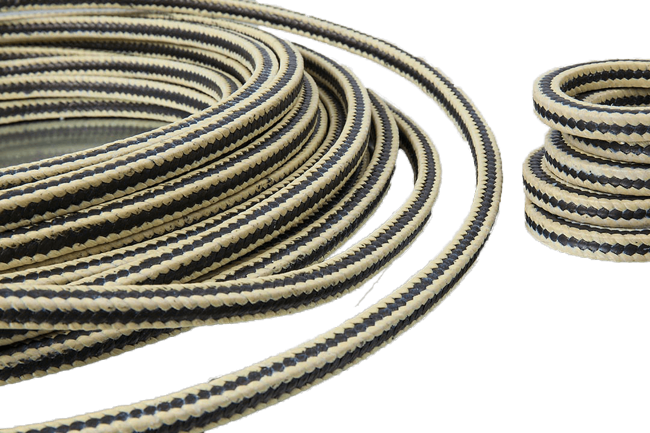

LATTYflon 4757 Packings for Reciprocating, Rotary and Static Applications
Brand: Latty International S.A.Multi-yarn packing: the corners of the packing are made of 100% aramid yarns impregnated with PTFE using our exclusive "Filcoat"-process, while the friction faces are made of 100% graphited PTFE and lubricated.
The packing is then re-impregnated with a mix of PTFE and inert lubricant during braiding operation.
Available in preformed packing rings, on request.
Packing combining the advantages of braided graphite-PTFE and aramid, high mechanical resistance, compression packing, specific applications for reciprocating and rotary pumps.
Features- Outstanding Mechanical Resistance, Very Good Heat Dissipation
- High Flexibility, Makes Installation Easier
- Graphite-PTFE And Aramid Packing, Self-Lubricating
- LATTY-Exclusive «FILCOAT»-Process
Specifications
Brand
Pressure
- 0 to 1800 bar
- 0 to 180 MPa
- 0 to 26106 psi
Temperature
- -220° to 300° C
- -364° to 572° F
Speed
- < 22 m/s
pH
- 2 - 14
Fluids
- Slurry Fluids
Composition
- Aramid
- Chemical
- Agro-Chemical
- Petrochemical
- Paper and Sugar Industries
- Power Stations
