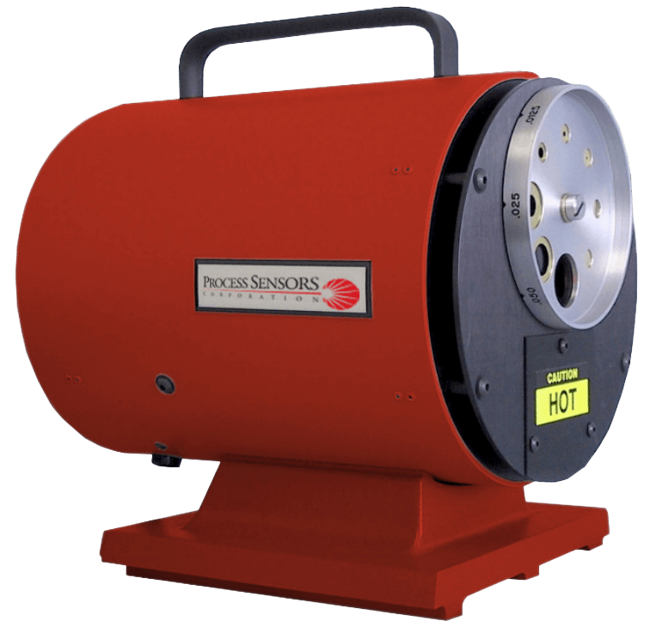

BBS1200 Compact Blackbody Calibration Source
Brand: Process Sensors Corporation
The rugged and affordable BBS1200 Compact operates in the 50 to 1200° C range (122 to 2192° F).
Exceptionally portable and light weight, the precision BBS1200 Compact boasts a fast slew rate and the same high uniformity realized with the entire Process Sensors Corporation blackbody line.
The portable BBS1200 Compact source sports a large non-slip handle, measures 11.75″ x 11.4″ x 8″, and weighs 17 pounds, making it easy to maneuver and position for optimum performance.
The digital self-tuning PID controller module measures 5.1″ x 13.4″ x 12″ and weighs only 9 pounds.
Specifications
Accuracy
- ± 0.2° C (± 0.36° F) NIST Standard
Cable Length
- 8 feet (2.4 metres)
Communication
- IEEE -488 / GPIB
- RS-232
- RS-485
Control Functions Characteristics
- Method of Control: Digital Self-Tuning PID Controller
Mounting
- 19” Rack-Mounted
NACE & NIST
- NIST
Operating Temperature
- 0° to 50° C (32° to 122° F), Cooling: Fan Cooled
Power Requirement
- 208-240 Vac, 50/60 Hz, 800 W, Max.
- 90-125 Vac, 50/60 Hz, 800 W, Max.
Resolution
- 0.1° C
Sensor, Probe Type
- Embedded 0.01 % Matched Typical S Thermocouple
Size
- Variable Aperture Size: 0.025” to 1” (0.63 to 25.4 mm)
Stability
- Stability Short/Long-term: ± 0.1° C (± 0.18° F)
- Stability Short/Long-term: ± 0.2° C (± 0.36° F)
Temperature Range
- 50° to 1,200° C (122° to 2,192° F)
Update Time
- Heat-Up Time: 100° to 1,200° C (212° to 2,192° F) < 70 minutes
