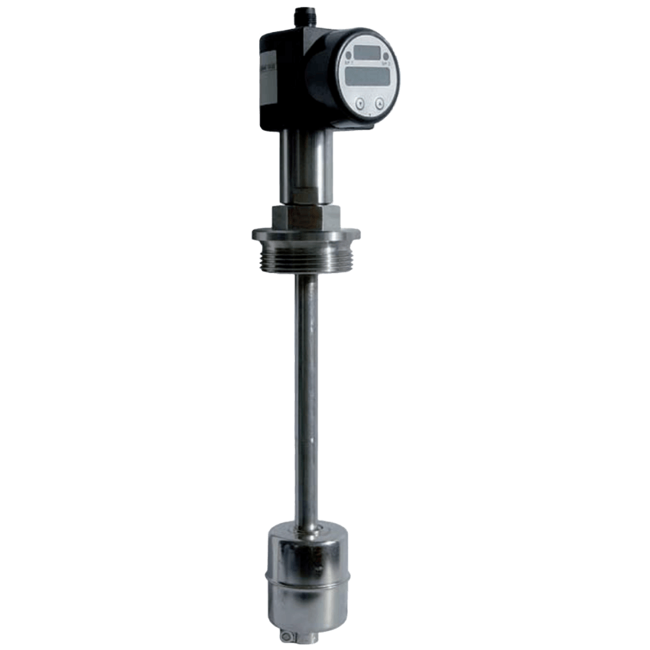

MG 04 Level Transmitter
Brand: Trimod BestaLevel transmitter made from stainless steel, with display with 4-20 mA output signal or 2 limit values.
Specifications
Brand
Accuracy
- 12 mm
BSP Connection
- 1-1/2” BSP Male
- 2” BSP Male
Density Range
- ≥ 750 kg/m³
Electrical Connectors
- Display Module with M12 Plug
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 16 (DIN 2527, Form B)
Length
- Tube Length: 236.2” (6,000 mm)
Materials of Construction
- Tube: 316Ti Stainless Steel, 1.4542
Maximum System Pressure
- psi: 580.2 (kPa: 4,000, bar: 40)
Mounting Position
- Vertical ± 30°
Operating Pressure
- psi: 232 (kPa: 1,600, bar: 16) - Max.
Operating Temperature
- Float: 80° C (176° F) - Max.
Output
- 4-20 mA
Pressure Range
- bar: 0 to 40
- kPa: 0 to 4,000
- psi: 0 to 580.2
Process Connection Material
- 316 Titanium Stainless Steel, 1.4571
Sensor, Probe Style
- Float (Cylindrical/Spherical)
Supply Voltage
- 18-32 Vac
Temperature Range
- -30° to 80° C (-22° to 176° F)
