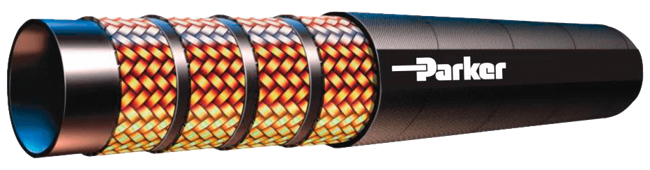

Oil Field Hose Slim Hole Hose (4 WIRE)
Brand: Parker HannifinSlim hole hose is Parker proprietary design & manufactured to strict international quality specifications in order to provide consistency of performance.
Designed with a universal design parameters & construction to meet global industry standards.
It offers a long service life and a wide range of fluid compatibility.
Features- Hose with 4 wire braid reinforcement & ozone resistant cover.
- Long lasting & easy to handle.
Specifications
Brand
Applications
- Oil Field
Hose I.D. (inch)
- 2-1/2” - 3
Hose I.D. (mm)
- 63.5 - 76.2
Hose I.D. (Size)
- -40 to -48
Hose O.D. (inch)
- 3.38 - 3.90
Hose O.D. (mm)
- 86 - 99.1
Maximum Working Pressure (bar)
- 179 - 95
Maximum Working Pressure (Mpa)
- 17.9 - 9.5
Maximum Working Pressure (psi)
- 2600 - 1375
Maximum Working Temperature (°C)
- 121° C
Maximum Working Temperature (°F)
- 250° F
Media
- Hydraulic Fluids
Minimum Bend Radius (inch)
- 30 - 43.5
Minimum Bend Radius (mm)
- 762 - 1105 762 to 1105
Minimum Working Temperature (°C)
- -40° C
Minimum Working Temperature (°F)
- -40° F
Temperature Range (°C)
- -40° to + 121° C
Weight (kg/m)
- 6.45 - 6.72
Weight (Lbs/Ft)
- 4.37 - 4.55
- Off-Shore Applications & Hydraulic Rigs
- Suitable For Petroleum Based Hydraulic Fluids
- Synthetic Esters
- Biodegradable Hydraulic Fluids
- Water-Glycol Fluids.
