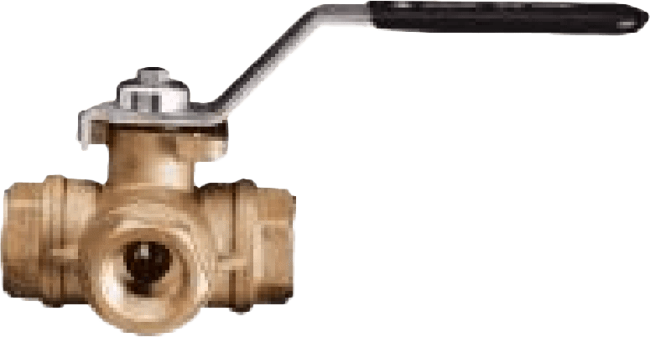

Series 355N/365N Direct Mount 3 Way Ball Valve
Brand: Rubinetterie Bresciane BonomiBrass ball valve - Three way diverting valve with ISO 5211 pad for actuator, standard port, from 1/4” to 3”. Four seats.
355N - LEVER HANDLE - SIZE 1/4” TO 3”. “T” FLOW PATTERN
365N - LEVER HANDLE - SIZE 1/4” TO 3”. “L” FLOW PATTERN
Features- Pressure rating 400 WOG - 100 WSP
- Model 355N (90° and 180° flow path)
- Model 365N (90° with off position)
- Temperature to 344° F
- Blow out proof stem, chrome plated brass ball
- P.T.F.E. seats with O-RING backing for low operating torque
- P.T.F.E. seats and double O-RING stem packing
- 100% electronically tested in the open and closed position at 80 psi
Specifications
Size
- 1/4” to 3”
Pressure Range
- 400 WOG - 100 WSP
Temperature Range
- Up to 344° F
Seat Material
- PTFE
