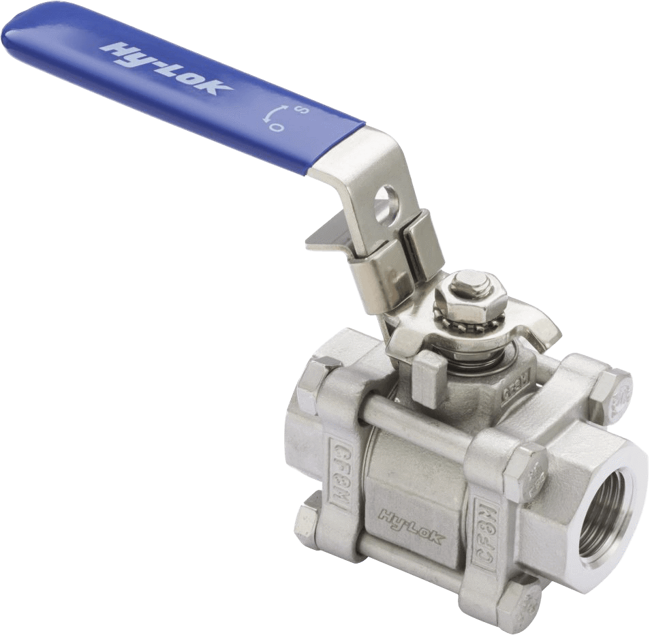

SO Series Swing Out Ball Valve
Brand: Hy-Lok USA, Inc
Features
- Pressure rating up to 3,000 psig (206 bar) at 100° F (38° C)
- Temperature rating from -20° to 450° F (-28° to 232° C) with standard reinforced PTFE seat material
- Stem disc spring compensates for temperature and pressure changes
- Chevron stem packing provides low operating torque and compensates for wear.Stem bearing is PEEK standard
- Precision machined ball reduces torque and improves sealing
- Swing out center body design available in 3-way (switching) pattern
- Self locking device and pad lock
- Oval or extended handle option provides low operation torque
- Size range from 1/4″ thru 1″ tubing and piping
- Variety of end connections include DIN 2353 L & S series, and male/female DIN / ISO / BSP / NPT threads
- Body Material is available in 316 stainless steel and carbon steel
Specifications
Brand
Body Material
- CF8M/A351
Ball/Stem/Gland/Support Ring Material
- 316 Stainless Steel/A479
Seat /Lower and Upper Packing Material
- Reinforced PTFE
Flange Material
- CF8M/A351 it 316 Stainless Steel/A479
Flange Seal Material
- PTFE
Stem Bearing/Packing Support
- PEEK
Handle / Grounding Spring / Locking Device Material
- Stainless Steel
Body Bolt
- Gr. B8M/A193
Body Nut
- Gr. 8M/A194
Pressure Rating
- Maximum 3,000 psig (206 bar) @ 100° F (38° C)
Temperature Range
- -20° to 450° F (-28° to 232° C)
Orifice Size
- 7.1 mm, 13.1 mm, 22.2 mm
Size Range
- Hy-Lok End: 1/4” to 1” (6 to 25 mm)
- Screwed End: 1/8” to 1” (NPT, BSPT)
- Butt-Weld End: 1/4” to 1” (Pipe)
- Socket Weld End: 1/4” to 1” (Tube and Pipe)
- ZCO O-Ring Face Seal End: 1/4” to 1/2”
- ZCR Metal Gasket Seal End: 1/4” to 1/2”
- Chemical Processing
- Oil & Gas Production
- Pharmaceutical
- Power & Utilities
- Biotech
- Food & Beverage
