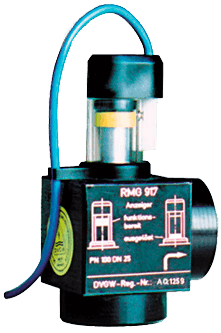

HON 917
Brand: Honeywell International IncHoneywells HON 917 is a monitoring device for leakage gas flows.
It is ideal for use with safety relief valves (SRV) as it can indicate opening of the relief valve and simplify the monitoring of SRV response and SRV setpoint adjustment.
What Is It?
Features include:
- Easy operation
- Integral over-pressure protection
- Replaces a vent gas meter
- Optionally with REED-contact for remote indication
- Suitable for non-aggressive gases, other gases on enquiry
- DVGW registration
- SEP design according to PED
- Max. admissible pressure PS: 100 bar
- Max. operating pressure pmax:up to 100 bar
- Valve seat diameter: 28 mm
- Response point Ql: 100 l/h (air)
- Connection: Pipe connections; DIN EN ISO 8434-1 (DIN 2353), optionally inlet or outlet, for pipe sizes 10 mm, 12 mm, 16 mm, 20 mm, 22 mm, 25 mm. 28 mm and internal threads DIN EN ISO 228 - G 1
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
