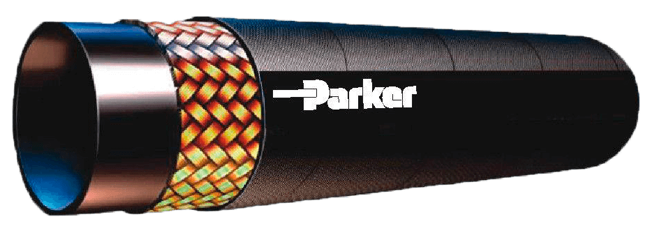

CNG -25 bar Wire Braided Hose - OBSOLETE

Brand: Parker Hannifin
Add Product to My Catalog

CNG hose meets SAE J 30 R6. It’s a one wire braid with ozone resistant cover.

Specifications

Brand

Applications

  • Engine

Hose I.D. (inch)

  • 1/4 - 1

Hose I.D. (mm)

  • 6.4 - 25.4

Hose I.D. (Size)

  • -4 to -16

Hose O.D. (inch)

  • 0.49 - 1.38

Hose O.D. (mm)

  • 12.4 - 35

Maximum Working Pressure (bar)

  • 25

Maximum Working Pressure (Mpa)

  • 2.5

Maximum Working Pressure (psi)

  • 363

Maximum Working Temperature (°C)

  • 100° C

Maximum Working Temperature (°F)

  • 212° F

Media

  • Fuels

Minimum Bend Radius (inch)

  • 2.75 - 11.81

Minimum Bend Radius (mm)

  • 70 - 300 70 to 300

Minimum Working Temperature (°C)

  • -40° C

Minimum Working Temperature (°F)

  • -40° F

Temperature Range (°C)

  • -40° to + 100° C

Weight (kg/m)

  • 0.15 to 0.83

Weight (Lbs/Ft)

  • 0.10 - 0.55
