Emerson KTM Split Body Ball Valve, Model OM­2

Model OM­2 Split Body

Brand: KTM
Add Product to My Catalog

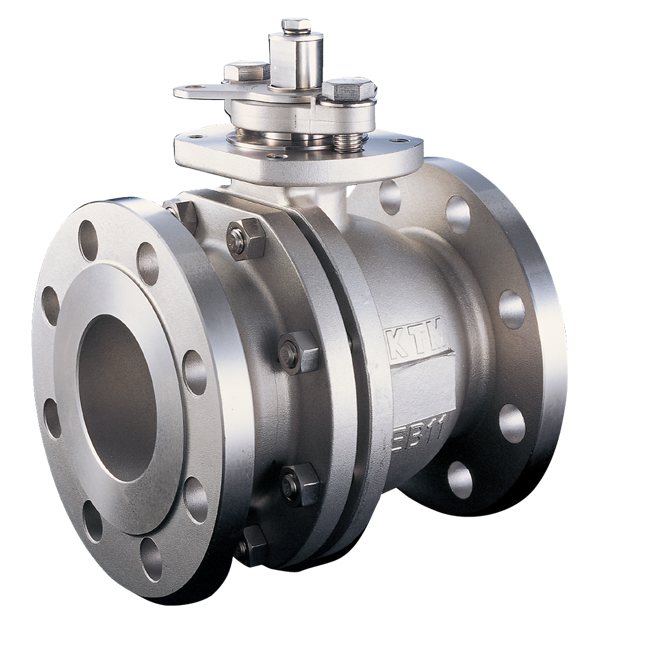

Emerson KTM Split Body Ball Valve, Model OM­2
A new generation of ball valves with fugitive emission control and ISO mounting pad.
Features
  • Superior valve design at a competitive price.
  • Fugitive emissions control for flammable and non-flammable applications.
  • Valve fugitive emissions capability third party certified to ISO 15848-1.
  • Machined ISO actuator mounting pad.
  • Pure white E-seat (PTFE/PFA copolymer) seal relieves concern over product contamination.
  • Positive alignment of split body.
  • Fire test certified to API 607 5th edition and ISO 10497.
  • PTFE bearing and packing rings reduce wear.
  • Lower operating torque for ease of operation and reduced actuator cost.
  • Positive position indication.
  • Blowout-proof shaft.
  • NACE MR-01-75 available on request.

Specifications

Brand

Approvals & Certifications

  • SIL Capable, CE, PED, Fire Safe

Body Design

  • Side Entry, Long Pattern

End Connection

  • Flanged

Material

  • Stainless Steel, Stainless, Low Temp Carbon Steel, Inconel, Hastelloy, Carbon Steel, 316 Stainless Steel, 304 Stainless Steel, Alloy

Media

  • Steam, Water Glycol, Aggressive Liquids & Gases, Air, Water, Vacuum, Specialty Gases, Solid, Oxygen, Other, NH₃ (Anhydrous Ammonia), NH₃, Natural Gas, Mineral Oil, LPG, Liquids, Liquid Propane Gas, Liquid Propane, Liquid, Light Oil, Hot Water, Fuel Oil, C

Operating Temperature

  • -330° to 842° F (-200° to 450° C)

Pressure Class

  • ASME

Process Connection Type

  • Flanged, Class 300 RF, Class 150 RF, 300 RF, 150 FF

Seat / Seal Type

  • Soft Seal, Metal-to-Metal, Ball

Shutoff Class

  • API 598, Class VI (FCI 70-2), Class V (FCI 70-2), Zero Leakage, Rate D (ISO 5208)

Standards

  • ASME B16.34, API 608

Valve Size

  • NPS 8 / DN 200, NPS 6 / DN 150, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 2-1/2 / DN 65, NPS 2 / DN 50, NPS 1-1/2 / DN 40, NPS 10 / DN 250, NPS 1/2 / DN 15, NPS 4 / DN 100

Valve Size Standard

  • NPS, DN

Valve Type

  • Floating Ball Valve, Ball Valve, Ball, Automated Ball Valve

  • Blowers
  • Bioreactor
  • Biomass Boiler & Power Boiler
  • Beverages
  • Brewing
  • Burners
  • Bulk Storage
  • High Temp
  • General Service
  • Gas Gathering & Compression
  • Fueling
  • Fuel Management Systems
  • Fuel Gas
  • FPSO
  • Facilities & Proc

Documentation

Data Sheets

Product Manuals

Brochure
