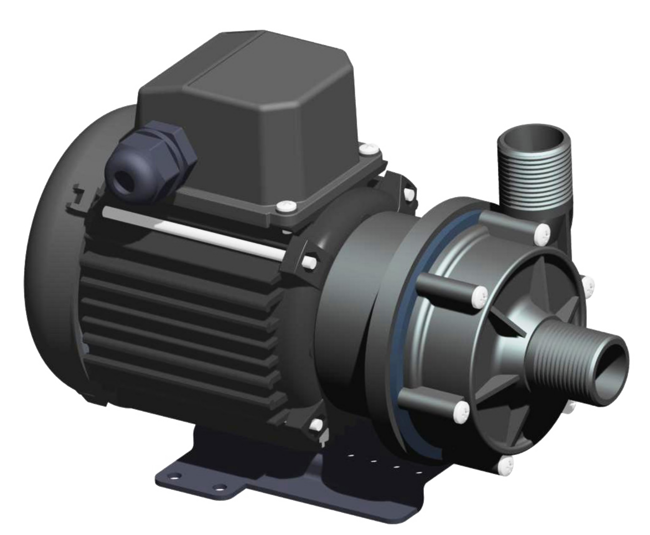

EMP80 6 Series Magnetic Drive Centrifugal Pump
Brand: Flojet
FeaturesManufactured in chemical resistant thermoplastics – entirely non-metallic.
Magnetic couplings provide energy efficient thermal shield, minimizing heat transfer to the pumped fluid.
IPX5 standard motor housing.
Deep groove ball bearings.
1 - 3 of 3 Part Numbers
40693 NEMP80/6 Magnetic Drive Centrifugal Pump
- Frequency - 50 (Hz)
- Port Type - 3/4" (19 mm) BSP Male
- Voltage - 230 (VAC)
426976 NEMP80/6 Magnetic Drive Centrifugal Pump
- Frequency - 50/60 (Hz)
- Port Type - 3/4" (19mm) NPT male
- Voltage - 100-110 (VAC)
456985 NEMP80/6 Magnetic Drive Centrifugal Pump
- Frequency - 50/60 (Hz)
- Port Type - 1" (26mm) hose barb
- Voltage - 100-110 (VAC)
1 - 3 of 3 Part Numbers
Specifications
Brand
Dimensions (H x W x D)
- 143 x 220x102 mm
- 5.6 x 8.7 x 4.0 (inches)
Frequency
- 50/60 Hz
Materials of Construction
- All PPS Version Available for High Temperature/Pressure Applications
- Alumina Ceramic Spindle
- PP Encapsulated Magnet, PVDF Optional
- PP Pump Housing, PPS & PVDF Optional
- PPS Spindle Housing, PVDF Optional
- Standard EPDM O-Ring, Optional Nitrile or Viton
Maximum Liquid Temperature
- -20° to 85° C
- -4° to 185° F
Maximum System Pressure
- 1.4 bar
- 20 psi
Motor Power
- 60 (W)
Voltage
- 100-110 or 230 Vac
Weight
- 3.1 kg
- 6.8 lbs
