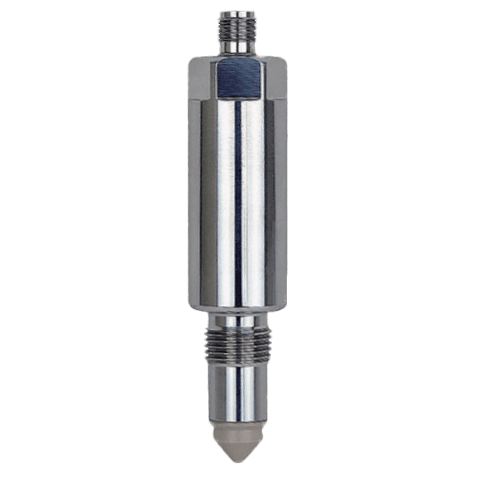

SIS100 Sanitary Intelligent Level Switch
Brand: FineTekWorking principle of this sensor is based on the frequency sweep technology.
The sensor tip will send out electric field signal, and different resonance frequency is created according to different medium.
Thus a switching signal will be triggered if the sensor is covered with material.
Features- Easy installation by standard connection with IP67/IP68/IP69K as protection grade.
- Compact design, easy carry; can be installed in narrow space or stringent operation condition.
- The surface roughness (Ra) can be customized and applicable for chemical & pharmaceutical and food processing industries.
- With magnetic test function to examine wiring and operation condition in real time.
- Durable stainless housing.
- Real time site-control by LED indicators.
- Overcurrent protection detects over current and shut down the output immediately.
- Workable in CIP and SIP cleaning environment.
- Unaffected by foam and viscous medium.
- Applicable to measure the single-point level of liquid, viscous medium and powder medium in the container and pipe; also providing pump dry run protection.
- It provides 2 output signals and the sensitivity can be set independently; which helps detect 2 kinds of medium (for instance: oil and water).
1 - 1 of 1 Part Numbers
SIS100
- Power Supply / Output - 18-30 Vdc, 2 PNP
- Output Function - Output1 = NO, Output2 = NC
- Media Type - Water-Based (Dielectric Constant ε ≧15)
- Wetted Material - 316 Stainless Steel
- Connection - 1/2" Male PF (G)
- Probe Materials - PEEK, Surface Roughness Ra < 0.8
- Probe Length - 1 Custom Probe Length in Millimeters
1 - 1 of 1 Part Numbers
Specifications
Brand
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Approvals & Certifications
- CE
- FDA
- IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-11
BSP Connection
- G 1/2" Male
Communication
- Digital Communication: Comply with IO Link V1.1
Consumption
- Power Consumption: 50 mA - Max.
Delay Time
- Switch Delay Function: < 1 second, Max.
Electrical Connectors
- M12, 4-pin Connector
Electrical Contacts
- Normally Closed & Normally Open
Electrical Protection
- Overvoltage Protection: Category II
- Short Circuit (Short-Time Pulse)
Environmental Protection
- IP67
- IP68
- IP69K
Indication
- LED Indicator: Yellow LED for Starting, Green LED for Resetting
Media
- Oil-based Media
- Powder Media
- Water-based Media
Output Load
- 100 mA - Max.
Pressure Range
- psig: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)
Process Temperature
- Maximum
PT/PF/PS (JIS) Connection
- 1/2" PF Male
Reverse Polarity Protection
- Yes
Sensor, Probe Material
- Sensor/Probe Material, Surface Roughness: PEEK, Ra< 0.8
Sensor, Probe Style
- Electric Field Signal
Supply Voltage
- 18-30 Vdc
Switch Quantity
- 2 Switches
Switch Type
- Output Mode: NPN/PNP
Voltage Drop
- 2.5 V, Max.
Wetted Materials
- 316 Stainless Steel
- 316L Stainless Steel
- Beverage & Food Manufacturing
- Food Manufacturing
- Pharmaceutical Manufacturing
