Intelligent Non Relay Photoelectric Duct Housing

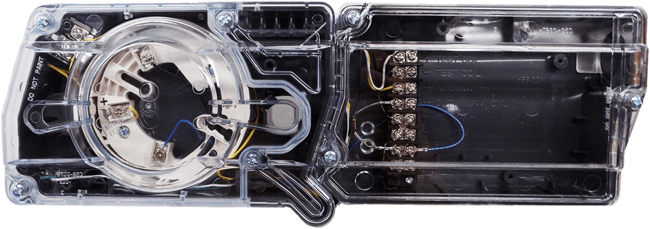

Brand: Fike CorporationThe Intelligent, Non-relay Photoelectric Duct Housing, P/N 63-1158, is designed to provide a mounting point for the Fike Intelligent Photoelectric Duct Sensor, P/N 63-1057 sold separately.
The housing is equipped with an integral detector base that allows quick twist-in, twist-out installation of the detector head.
This allows quick and easy cleaning or application changes of the detector without removing the duct housing.
The housing features a pivoting housing that fits both square and rectangular footprints capable of mounting to a round or rectangular duct.
Features- Photoelectric, integrated low-flow technology (detector head sold separately)
- Air velocity rating from 100 to 4,000 ft/min (1.52 to 20.32 m/s)
- Versatile mounting options: square or rectangular configuration
- Broad ranges for operating temperature -4° to 158° F (-20° to 70° C) and humidity 0 to 95% non condensing
- Patented sampling tube installs from front or back of the detector with no tools required
- New cover tamper signal
- Increased wiring space with a newly added 3/4 inch conduit knockout
- Available space within housing to accommodate mounting of relay module
- Clear cover for convenient visual inspection
- UL 268A listed
- Remote testing capability
- Requires com line power only
Specifications
Brand
Approvals & Certifications
- CSFM
- FM
- UL 268A
Humidity
- 0 to 95 % Relative Humidity, Non-Condensing
Operating Temperature
- -20° to 70° C (-4° to 158° F)
Storage Temperature
- -30° to 70° C (-22° to 158° F)
