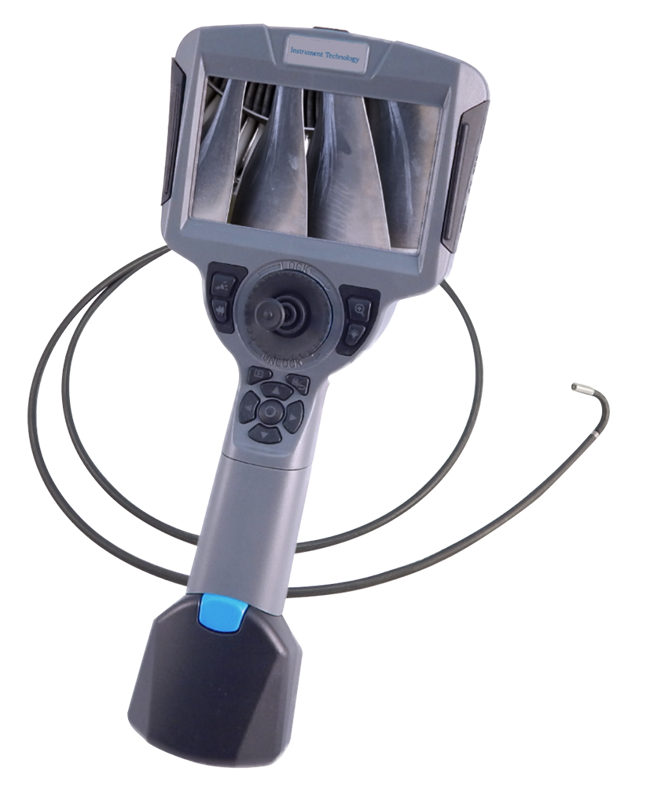

Handheld xP Videoscope
Brand: ITI Instrument Technology, IncITI’s series of xP (x-changeable Probes) offer a high degree of flexibility and a wide range of applications. With 360o articulation, LED illuminated Camera with superior imaging capabilities, ITI’s handheld Videoscopes are a cut above the rest.
Features- One hand operation with an intuitive interface
- Easy to maneuver, joystick-controlled articulation
- Large 5” high resolution display
- Ideal for use in limited access areas or in spaces that are difficult to navigate such as stairs or ladders
- Durable, water and oil resistant even in the most challenging environments
- Extremely easy to use, even while wearing protective gloves
Specifications
Diameter
- Ø4.5 mm (0.177”)
- Ø6.2 mm (0.244”)
- Ø2.85 mm (0.112”)
Length
- 1.0 m, 2 m, 3 m
Material of Construction
- Tungsten
- Stainless
- Handle: ABS and TPE
Articulation
- 2-way (L.R)
- 360° Around
Angle
- > 160°/150°
- > 150°/120°
- > 140°
Mode
- Joystick
Ingress Rating
- IP64
Camera Pixel
- 640x480
- 1280x720
- 160k
Camera View Angle
- 90°
- 120°
Depth of Field
- 5-50mm
- 60 mm-Infinity (60°), 8-80 mm (90°)
- 5-50 mm, 15 mm-Infinity
Zoom
- 1x to 3x
Illumination
- 5 Levels
Display Monitor
- 5”, 800x480
Power
- Battery: Li-ion, 3.7 V
- AC Charger: 100-240 VAC, 50/60 Hz
Operating Temperature
- -10° to 50° C (14° to 122° F)
- Auto Engines
- Aircraft Engines
- Power Generation
- Manifolds
- Valves
- Portable Battery Applications
