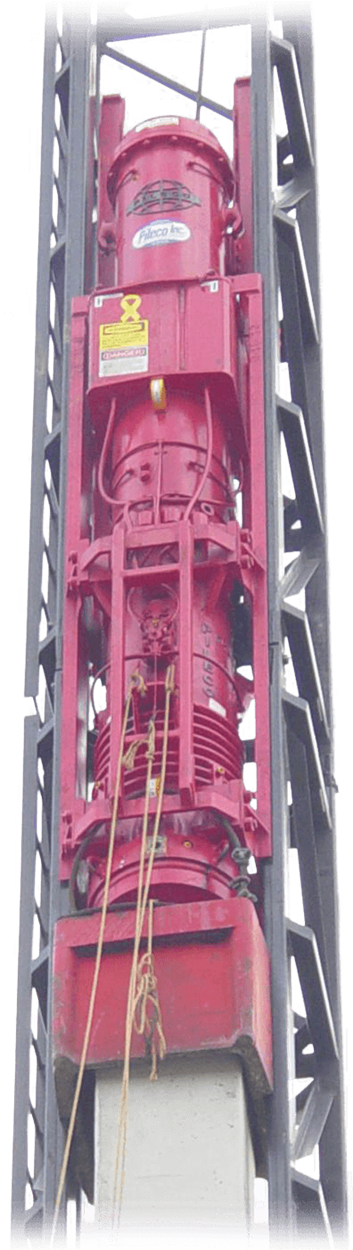

D46-32 Diesel Hammer
Brand: PACO Ventures, LLC
Specifications
Brand
Pump Setting 1
- 54,320 ft-lbs (74 kNm)
Pump Setting 2
- 70,805 ft-lbs (96 kNm)
Pump Setting 3
- 89,040 ft-lbs (121 kNm)
Pump Setting 4
- 107,280 ft-lbs (145.5 kNm)
Blows Per Minute
- 37 - 52
Related Piston Stroke
- 5.3 - 10.5 ft (1.6 - 3.2 m)
Fuel Consumption at Full Load
- 4 gal/hr (16 L/hr)
Oil Consumption
- 0.39 gal/hr (1.5 L/hr)
Hammer
- 19,580 lbs (8,888 kg)
Piston
- 10,145 lbs (4,600 kg)
Hammer w/ Standard Guiding
- 22,100 lbs (10,025 kg)
Fuel Tank
- 24 gal (89 liters)
Oil Tank
- 5 gal (17 liters)

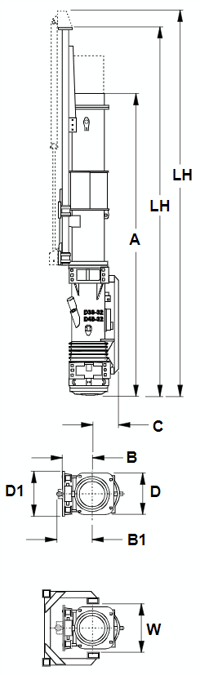

A - Length
- 18 ft (5,580 mm)
LH - Length, Standard
- 21 ft (6,490 mm)
LH - Length with Hydraulic Start
- 23 ft (6,860 mm)
B - Center to Trip
- 19 in (482 mm)
B1 - Center to Trip with Cylinder
- 26 in (660 mm)
C - Center to Pump Guard
- 21 in (521 mm)
D - Width of Hammer
- 29 in (724 mm)
D1 - Width of Trip
- 37 in (940 mm)
W - Minimum Lead Width
- 32 in (812 mm)
