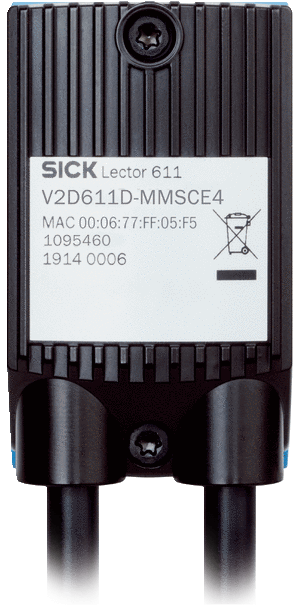

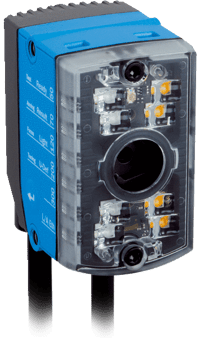

Lector61x Image-Based Code Reader
Brand: Sick AG
The Lector61x is the smallest image-based code reader of the Lector® series.
It is used for the reliable detection of 1D, 2D and stacked codes and is characterized by excellent reading properties for very small codes, regardless of the surface quality or the material color.
The compact housing with flexible cable routing makes it the ideal code reader for production lines where space is tight.
Its variable and stepless focus adjustment enables use for long and short reading distances and low-cost installation is possible thanks to the snap-in mounting.
Features- Flexible in use: small design, variable reading distances and reading of codes on different material colors
- Increase in productivity: code reading is possible even if the quality of the code is poor or if the surfaces are glossy
- Low-cost commissioning: snap-in mounting done in seconds and automated parameterization
- An industrial trend: integrated optics with magnifier effect for mini codes on small components and integrated distance measurement
1 - 8 of 8 Part Numbers
1105795
- Sensor Resolution - 1,280 px x 960 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked, Direct-Marked Codes
- Lens - Integrated, 6 mm
- Type - V2D611D-MMSBE4
1105796
- Sensor Resolution - 640 px x 480 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked, Direct-Marked Codes
- Lens - Integrated, 12 mm
- Type - V2D610D-MMSCE4
1105797
- Sensor Resolution - 640 px x 480 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked, Direct-Marked Codes
- Lens - Integrated, 6 mm
- Type - V2D610D-MMSBE4
1110306
- Sensor Resolution - 1,280 px x 960 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked, Direct-Marked Codes
- Lens - Integrated, 12 mm
- Type - V2D611D-MMSCE4
1117772
- Sensor Resolution - 1,280 px x 960 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked
- Lens - Integrated, 12 mm
- Type - V2D611R-MMSCE4
1117773
- Sensor Resolution - 1,280 px x 960 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked
- Lens - Integrated, 6 mm
- Type - V2D611R-MMSBE4
1117774
- Sensor Resolution - 640 px x 480 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked
- Lens - Integrated, 12 mm
- Type - V2D610R-MMSCE4
1117775
- Sensor Resolution - 640 px x 480 px
- Code/Data Cards - 1D Codes, 2D Codes, Stacked
- Lens - Integrated, 6 mm
- Type - V2D610R-MMSBE4
1 - 8 of 8 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- EAC
Enclosure Rating
- IP54
Sensor Resolution
- 640 x 480 pixels
- 1,280 x 960 pixels
Scanning Frequency
- 40 Hz
Reading Distance
- 50 to 300 mm
Communication
- Ethernet, TCP/IP
- PROFINET
- EtherNet/IP
- Serial, RS-232
- CANopen
- CAN
Focal Length
- 6 mm, 12 mm
Internal Lighting
- Amber
- Blue
Weight
- 165 g
