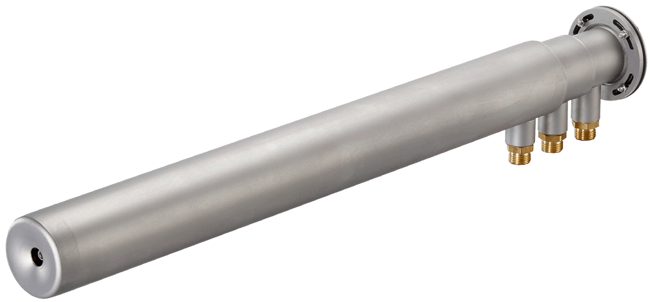

D-FS 50 Furnace Camera
Brand: Durag
Digital Furnace Camera delivers brilliant live video directly out of the combustion chamber.
Available in air or water cooled versions for process temperatures up to 2,000° C (3,632° F).
The D-FS 50 can be combined with the D-VT 50 Video System or the D-VTA 200 Thermography Analysis System.
Features- Up to 2,000° C (3,632° F) - Air and water-cooled versions for use inside the combustion chamber
- Different FOV (field of view) - Adaptation of the lens system to the application
- Digital colour camera - Progressive Scan with 1280 x 960
- PT100 - Monitoring of temperature at sensor tip
- Length up to 1,500 mm (60") - Different lengths for adaptation to wall thickness and installation position
- Modular design - Minimises repair costs in the extreme case of a permanent cooling media failure – sapphire window separately replaceable.
Specifications
Brand
Ambient Temperature Range
- With Purge Air < 40° C: -30° to 80° C (-22° to 176° F) - Max.
- Without Purge Air: -30° to 45° C (-22° to 113° F) - Max.
Applications
- Chemical Industry
- Power Stations
- Refineries
- Waste Incineration Plants
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - PN 16
Flange Size - 3” (DN 80)
- 3" (DN 80) - PN 10
Flow Rate
- Amount of Cooling Water (Air Cooled): > 30 Nm³/hour at T 30 Nm³/hour at T 10 Nm³/hour at T 10 Nm³/hour at T 500 L/hr at 500 L/hr at < 45° C (113° F)
Maximum System Pressure
- Furnace - psi: -1.45 to 1.45 (kPa: -10 to 10, Mbar: -100 to 100)
Media
- Air
- Water
Process Temperature
- Combustion Chamber: 0° to 1,600° C (32° to 2,912° F) - Max.
- Combustion Chamber: 0° to 2,000° C (32° to 3,632° F)
Resolution
- Video System: 1280 x 960 Pixels
Rotation
- 30°: 35°, 28°, 21°
- 60°: 60°, 48°, 36°
- 90°
Sensor, Probe Type
- Pt100
