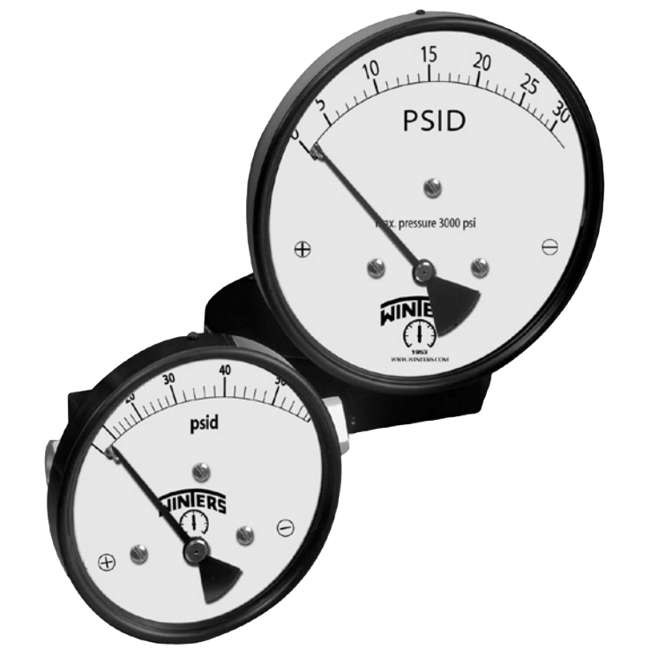

PVD Convoluted Diaphragm Gauge
Brand: Winters Instruments
Features
- Versatile high static low differential pressure gauge
- Switches available for actuation
- ASME B40.100 compliant
- IP65 enclosure rating
Specifications
Brand
Accuracy
- Inches WC 0 to 9.9: ± 5 % of Full Scale
- Inches WC 10 to 400: ± 2 % of Full Scale
Ambient Temperature Range
- -40° to 93° C (-40° to 200° F)
Approvals & Certifications
- CRN
Differential Pressure
- Inches WC: 0 to 400
- psid: 0 to 14.5 (kPa: 0 to 100, bar: 0 to 1)
Drain, Vent Valves & Plug
- Drain & Bleed Plug: Stainless Steel
Electrical Connectors
- Plug Connector DIN 43650
Electrical Rating
- 0.25 A at 125 Vac/dc, 3 W
Enclosure, Body Material
- Aluminum
- Brass
- Hastelloy C
- Plastic
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Lens
- Acrylic Lens
- Safety Glass
Maximum System Pressure
- Aluminum, Brass, Stainless Steel, Hastelloy C psi: 500 (kPa: 3,500, bar: 35)
- Engineered Plastic psi: 300 (kPa: 2,000, bar: 20)
Mounting
- Pipe Mounting Kit, Carbon Steel & Stainless Steel
- Wall Mounting Kit
NACE & NIST
- NACE for Sour Gas Applications
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2” NPT Female Adapter
- 1/4” NPT Female
Pressure Range
- bar: 0 to 1
- Inches WC: 0 to 400
- kPa: 0 to 100
- psi: 0 to 14.5
Pressure Type
- Differential
Process Connection Material
- Carbon Steel
- Stainless Steel
Seat / Seal Material
- Seal: Buna-N
- Seal: Ethylenepropylene
- Seal: Neoprene
- Seal: Silicone
- Seal: Viton
Sensor, Probe Type
- Convoluted Diaphragm Sensor
Size
- Dial: 3-1/2” (90 mm)
- Dial: 4-1/2” (115 mm)
Special Cleaning & Packaging
- Cleaned for Oxygen Service
Switch Type
- 1 or 2 Reed Switch
- SPDT
Tube Connection
- 1/4” Compression Fitting
Wetted Materials
- Hastelloy C
- Stainless Steel
- Filtration Systems
- Low Pressure Gas Systems
- Leak Detection
- Used in Tank Level, Horizontal or Vertical Flow Applications, Filtering of Very Low Pressure Gases
