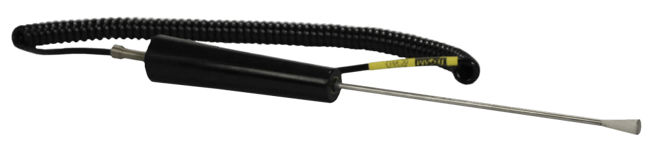

8695A RTD Temperature Probe

Brand: Tegam

For fast response measurement of all types of surfaces.

The thermal junction is actually mounted on a 1/4" diameter tip and makes direct contact with the surface being measured.

Designed to measure temperatures surfaces.

The stainless steel sheath is 1/8" diameter with a 1/4" diameter flat tip.

This probe has 1.5 feet coil cord that can be extended to 5 feet.
Features
  • Temperature Range: -18º to 205º F (0° F to 400° F)
  • Accuracy: ±0.1 Ohms from -50º to 300º C
  • Sensor Type: 100 Ohms RTD
  • Sheath: 6" length, 304 Stainless Steel
  • Cord: 1-1/2" feet (Extended to 5 feet) Coil Cord with Thermoplastic Rubber Jacket

Specifications

Brand

Accuracy

  • ± 0.1 ohms from -50° to 300° C

Cable Length

  • 1.5 to 5 feet (0.45 to 1.5 metres) - Coil Cord

Cable Material

  • Thermoplastic Rubber Jacket - Cord

Length

  • 6” (150 mm) - Sheath

Materials of Construction

  • 304 Stainless Steel - Sheath

Response Time

  • 3 seconds

Sensor, Probe Type

  • RTD - 100 ohms

Size

  • Mounted on 1/4” Diameter Tip

Temperature Range

  • -50° to 260° C (-58° to 500° F)

Tip Style

  • Flat Tip
