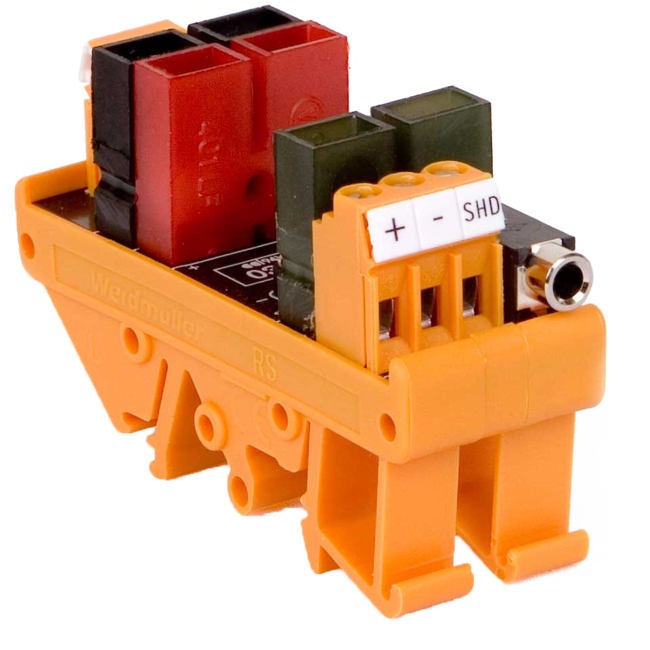

INSTALINK-PLI Passive Loop Interface

Brand: Emphatec
Add Product to My Catalog

The InstaLink-PLI combines the features of three terminal blocks used to interface a current loop to a PLC or DCS - two feedthrough terminals and a ground terminal for the shield. But it also includes a make-before-break connector as well as HART protocol test points.

The module is passive and requires no power. Like many of the InstaLink modules the PLI module includes a makebefore-break connector that allows a meter to be inserted into the input loop and removed without causing a momentary interruption of the loop.

A test cable is available.
Features
  •  Provides terminals for a 2-Wire current loop and a shield

  •  Make-before-break test jack for temporary connection of a meter

  •  Test points for a HART device

  •  Mounts on 32 mm and 35 mm DIN rails

    • 1 - 1 of 1 Part Numbers
    INSTALINK-PLI
    INSTALINK-PLI
    • Model - InstaLink -PLI
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Approvals & Certifications

    • UL (C,US) E256770

    Communication

    • 2 HART Protocol Test Points

    Electrical Connectors

    • 26 to 12 AWG

    Input

    • 4-20 mA

    Mounting

    • 32 mm or 35 mm DIN Rail

    Output

    • 4-20 mA

    Voltage

    • Cross Connections: 24 V, 0 V (Only One Would be Cross Connected based on Whether the Field Transmitter Sources or Sinks the PLC / DCS Analog Input) & Shield
