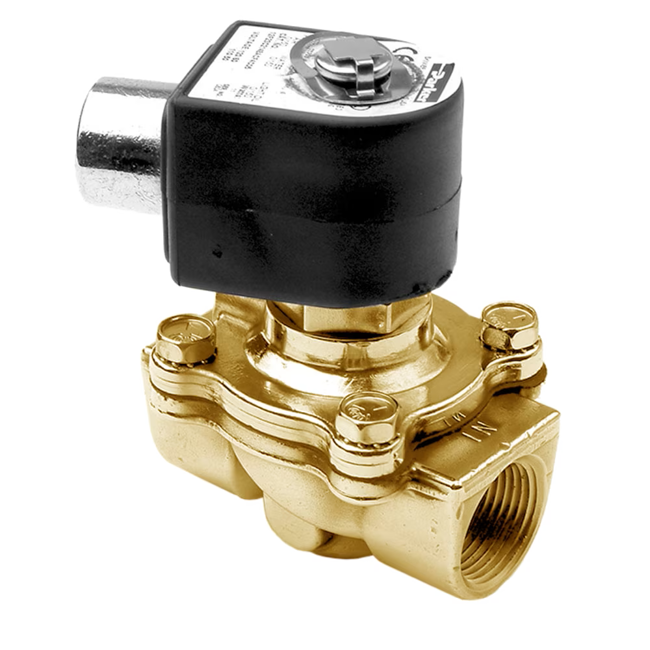

Parker 2-Way Normally Open, ¾" NPT General-Purpose Solenoid Valves

Brand: Parker - Fluid Control Division
Add Product to My Catalog

Parker 2-Way Normally Open, ¾" NPT Solenoid Valves provide operating pressures of 150 psi and flow factors up to 5.5 Cᵥ's.

They offer multiple body materials, mounting positions and coil options for all general-purpose flow control applications.

Parker's 2-Way Normally Open ¾" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam.

These valves are available in brass and stainless steel construction. Coil options are available in ½" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Features
  • High Quality Standards of Skinner® and Gold Ring™ Brand
  • Modular Design
  • Long Life
  • Tight Shutoff

1 - 12 of 38 Part Numbers
12F23O2148A3F4C75
12F23O2148A3F4C75
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11.5 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (DC) Maximum Pressure Differential (psi)
12F23O2148A3F4C80
12F23O2148A3F4C80
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11.5 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (DC) Maximum Pressure Differential (psi)
12F23O2148A3FPH75
12F23O2148A3FPH75
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11.5 Watt (DC) Power (Watts), DIN Form A, Class F Coil Type, 150 psi (DC) Maximum Pressure Differential (psi)
12F23O2148A3FPH80
12F23O2148A3FPH80
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11.5 Watt (DC) Power (Watts), DIN Form A, Class F Coil Type, 150 psi (DC) Maximum Pressure Differential (psi)
12F23O2148ACF4C01
12F23O2148ACF4C01
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 24/60 Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2148ACF4C05
12F23O2148ACF4C05
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2148ACF4C15
12F23O2148ACF4C15
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2148ACFPH01
12F23O2148ACFPH01
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 24/60 Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2148ACFPH05
12F23O2148ACFPH05
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2148ACFPH15
12F23O2148ACFPH15
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), NBR Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2348ACF4C01
12F23O2348ACF4C01
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 24/60 Voltage (V), EPDM Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
12F23O2348ACF4C05
12F23O2348ACF4C05
PARKER 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), EPDM Seal Material, 3/4 Orifice 1 Size (inch), 5.5 Flow Factor 1 (Cv), 11 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 150 psi (AC) Maximum Pressure Differential (psi)
1 - 12 of 38 Part Numbers

View_Details

Specifications

Brand

Actuation

  • Direct Lift or Hung Diaphragm

Body Material

  • Brass

Coil Protection Mode

  • NEMA 4X or NEMA 7, 9, Class F or Class H

Coil Type

  • ¾” NPT Conduit, 18” Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H & ¼” Tab Terminal, Class F

Flow Factor 1

  • Up to 5.5 Cᵥ

Flow Factor 2 (Cᵥ)

  • N/A

Function

  • Normally Open

Maximum Fluid Temperature

  • 185°F

Maximum Pressure Differential

  • 150 psi (AC or DC)

Media

  • General-purpose for Air, Liquids & Gases

Minimum Fluid Temperature

  • 0°F

Minimum Pressure Differential

  • 0 psi

Number of Ports

  • 2

Orifice 1 Size

  • Up to ¾”

Orifice 2 Size (inch)

  • N/A

Port Size

  • ¾”

Port Type

  • NPT

Power

  • 10 to 11 Watts (AC) or 10 to 11.5 Watts (DC)

Seal Material

  • NBR, FKM or EPDM

Series

  • 7000 & Gold Ring Series

Valve Type

  • 2-Way

Voltage

  • Up to 240 / 60 (VAC) or 24 (VDC)

  • Instrumentation Equipment
  • Analyzers and Diagnostic Equipment
  • Medical and Dental Equipment
  • Portable Welding Equipment
  • Spraying Equipment
  • Lubrication Equipment
  • Beverage Dispensing & Vending machines
  • Oil Burners
  • Humidification and Misting Equipment
  • Mobile Fuel Shut Off
  • Textile and Dry Cleaning Equipment
  • Commercial Dishwashers
  • Commercial Laundry and Dryers
  • Air Horns
  • Pneumatic Fan Clutch
  • Irrigation Equipment
  • Markets:
    • Commercial Equipment
    • Food & Beverage
    • Industrial Automation
    • Oil & Gas
    • Process Control
    • Transportation
