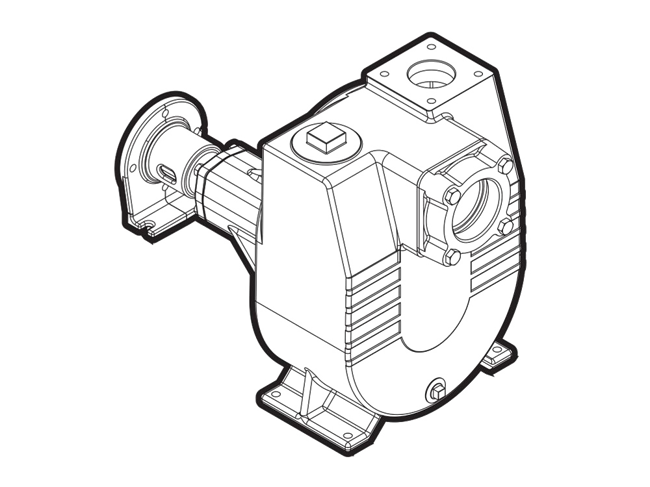

FMIH Series Hydraulic Driven Self-Priming Pump
Brand: Franklin Electric Co, Inc.The FMIH Series is a hydraulic driven self-priming pump.
Features- Volute: Cast iron rugged construction with tapped openings provided for priming, venting and draining.
- Impeller: Semi open cast iron, non clogging, designed for water but capable of mud, sand and silt up to 10% by volume.
- Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers, 300 series stainless components.
- Bearing Frame: For hydraulic drive with heavy sealed bearings and a keyed stainless shaft and replaceable wear plate for maintaining maximum efficiency.
- Mounting: Horizontal position.
- B-Fit 7/8-inch hydraulic spline shaft
Specifications
Capacities
- Up to 760 gpm
Head
- Up to 145 feet
Maximum Working Pressure
- 120 psi
Maximum Temperature
- 212 °F
Pipe Connections
- NPT
- Irrigation
- Construction
- Mining
- Commercial
- Municipal
- Light Industrial
- Water Truck
