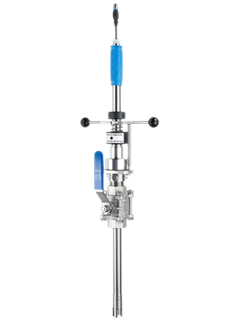

Manual Retractable Assembly Cleanfit CPA450
Brand: Endress+Hauser Group Services AGThe manual Cleanfit CPA450 is the first step into the world of retractable assemblies. It is designed for installation in thick-walled tanks or large pipes and copes with fibrous or coating media.
CPA450 features a ball valve which seals off the process reliably, making sensor handling extremely easy. It is no longer necessary to interrupt the process or empty a tank for sensor service or replacement.
Cleanfit CPA450 is intended for installation in thick-walled tanks and large pipes in:
- Chemical industry
- Pulp and paper industry
- Power plants
- Wastewater treatment
- Fibrous media or media that form coats
It is suitable for use with pressures of up to 12 bar.
Features- No process interruption for electrode cleaning and calibration – saves maintenance time and costs
- High operating safety through reliable separation from process by ball valve made of stainless steel
- Variable immersion depth up to 700 mm
- Flexible adaptation to all applications by great variety of materials and process connections
Specifications
Material of Construction
- Immersion Tube: Stainless Steel 1.4404, Alloy C22, Titanium 3.7035
Process Temperature
- -15° to 130° C (5° to 266° F)
Process Pressure
- Max. 12 bar at 100° C (Max. 175 psi at 212° F)
Certifications & Approvals
- 3.1B EN 10204
Dimensions
- Immersion Depth: Up to 700 mm (27.56 inch)
Connection
- Thread G 1-1/4"
- Thread NPT 1-1/4"
- Flange DN32 PN16
- Flange ASME 1-1/4"
- Chemical Industry
- Pulp & Paper Industry
- Power Plants
- Wastewater Treatment
- Supply Technology
