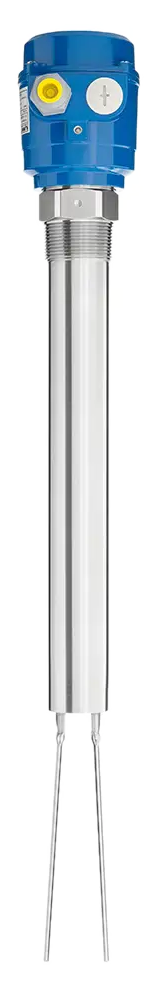

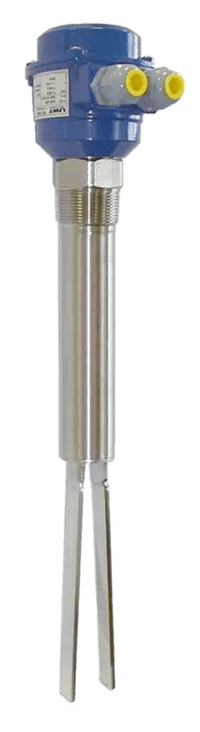

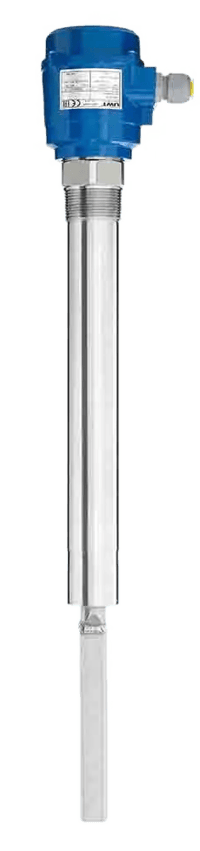

Vibranivo® - VN 2030 Vibration Level Switch
Brand: UWT GmbH
Application Area
The vibrating fork Vibranivo® VN 2030 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids.
Due to its high sensitivity, the probe is particularly suitable for use in very light bulk solids.
The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.
Features- Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
- Probe extension adjustable up to 4000 mm length
- Plug and play level limit switch without calibration
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
Version
- Pipe Extension
- Remote Version
- Enhanced Sensitivity
- Vibrasil 70
- Vibrasil 90
Medium
- Solids
Mounting Position
- Top
- Horizontal
- On a Socket
Ambient Temperature
- -40°C … +60°C (-40 … +140°F)
Process Temperature
- -40°C … +150°C (-40°F … +302°F)
Process Pressure
- -1 bar … +16 bar (-14.5 psi … +232 psi)
Minimum Sensitivity
- > 20 g/l (> 1.2 lbs/ft³)
- Option Enhanced Sensitivity: > 5 g/l (> 0.3 lbs/ft³)
- Option Vibrasil: 0.3 lbs/ft³)
Housing Type
- Standard
Housing Material
- Aluminum
Housing Protection Rating
- IP66
Threaded Connection
- ≥ R 1½"
- ≥ NPT 1½"
Flange Connection
- ≥ 2" / ≥ DN100
Hygienic Fittings
- Triclamp 2"
Wetted Materials
- Stainless Steel 1.4301 (304)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Tube: 300 Nm
- Oscillating Rods: 0.6 kN
Minimum Immersion Length
- 300 mm (11.8")
Maximum Immersion Length
- 4 m (13.15')
Power Supply
- 19...230 VAC
- 12.5...36 VDC
- Universal Voltage (19...55 VDC / 19...230 VAC)
- NAMUR
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- 8/16 mA
- 4-20 mA
- NAMUR
Approvals
- CE, ATEX, IEC-Ex, INMETRO, TR-CU
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Sliding Sleeve for Variable Immersion Length
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
