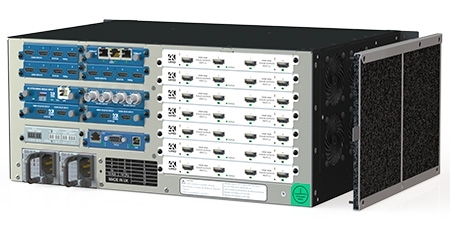

CORIOmaster2 Video Wall Processor
Brand: tvONE
CORIOmaster2 541-7A2 is a video processor based on the patented CORIO® video processing technology for creating complex video walls supporting input and output resolutions up to 4K60.
It has 4K media card and 8xHD HDMI inputs, 4x4K HDMI outputs. Allows you to manage a single huge 4.1 Gigapixel canvas. Windows and displays can be rotated in 1° increments. Embedded audio or external audio connectivity.
Intuitive and versatile software for powerful creative design and control. Customizable bezel compensation and multi-edge blending of projectors. Up-down-cross conversion. EDID manager. Secure command interface and simple serial control protocol. Can store up to 50 presets. 400 W PSU. 4U frame size.
Features- Up to 128 video windows: Up to 64 windows per canvas with 128 windows for the total system
- Go large and creative: 360 degree rotation and up to 56 outputs with high bandwidth outputs
- Huge design canvasses: Seamlessly manage multiple walls from a single chassis.
- Multi-user control options: Choose from software, app, 3rd party control or button panel.
- Make it sing: Embedded audio or external audio connectivity.
- Source labelling: Easy identification of IP sources.
- Luma Keying: Add real-time keyed elements to grab viewers attention.
- Optimized setup for complex LED. Add custom Grid Lines, Markers & Labels
- Easy 8K source management for impressive 8K video using 1 quad 4K workflows
- Fade to black & dissolve transitions provide more pleasing source changes
- Choose a variety of test patterns and grids for setting up projectors and LEDs
- 12G-SDI Support on inputs and outputs for 4K60 broadcast installations
Specifications
Brand
Inputs
- 4 - HDMI, type A
Outputs
- 8 - HDMI, type A
- 1 - Ethernet, RJ45 connector
- 1 - IP, RJ45 connector
- 1 - USB-B 3.0
- 1 - RS-232, D-sub DE9 connector
Maximum Resolution
- 4K - inputs
- 1080p - outputs
File Formats
- JPEG
- PNG
- BMP
- mp4
- mov
- mkv
- m4v
- ts
- mts
- mt2
- mpeg2
Internal Storage
- 128 Gb, high-speed
External storage
- FAT
- FAT32
- ext4
- NTFS
Ethernet Transfer Rate
- 1 Gbps
Video Decoding
- H.264, MPEG4
- H.265/HEVC 8-bit
Bitrate
- up to two 50 Mbps streams - H.264
- two 25 Mbps streams - H.265
Operating Temperature
- 0° to 40° C
Relative Humidity
- 10 to 85 % without condensation
Power Supply
- 100-240 V
Power Consumption
- 400 W
Certification
- FCC
- CE
- RoHS
- ULc
