AST Plug & Play Accelerometer, EGCS-D5

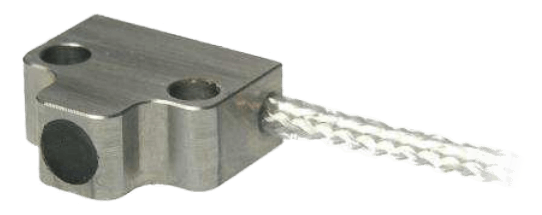

EGCS-D5 Plug & Play Accelerometer

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The Model EGCS-D5 accelerometer is critically damped with built-in over-range stops that are set to protect the unit against up to 20,000g shocks.

This is ideal for applications which may experience rough handling or in situations where the accelerometer must survive a high initial overload in order to make a low g measurement.

These units feature a Wheatstone Bridge output with compensated temperature range of 20°C to 80°C. An inline amplifier option is available for superior signal to noise performance.
Features
  • ±50 to ±10,000g Dynamic Range
  • Heavy Duty, Rugged
  • Static and Dynamic Measurement
  • DC to 10,000 Hz Frequency Response
  • ±1% Non-Linearity
  • -40°C to 100°C Temperature Range

View_Details

Specifications

Brand

Accuracy

  • ± 1 % of Full Scale Output - Non-Linearity

Approvals & Certifications

  • CE
  • RoHS

Cable Material

  • PTFE Insulated

Compensated Temperature

  • 20° to 80° C (70° to 170° F)

Electrical Connectors

  • 4 x 30 AWG Leads, PTFE Insulated, Braided Shield, FEP Jacket

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65

Excitation Voltage

  • 15 Vdc

Frequency

  • 0 to 10,000 Hz - Frequency Response Nominal
  • 0 to 5,000 Hz - Frequency Response Min.
  • 1,200 to 16,000 Hz - Natural Frequency

Humidity

  • Epoxy Sealed

Insulation Resistance

  • > 100 megaohms at 50 Vdc

Mounting

  • 2 x 4-40 Socket Head Cap Screws

NACE & NIST

  • NIST - Traceable Amplitude Calibration

Operating Temperature

  • -40° to 100° C (-40° to 212° F)

Output

  • ± 20 mV - Zero Acceleration Output

Resistance

  • 1,000 ohms - Output Resistance
  • 2,000 ohms - Input Resistance

Sensitivity

  • < 3 % - Transverse Sensitivity
  • ± 2.5 %/50° C (100° F) - Thermal Sensitivity Shift
  • 0.016-4 mV/g

Shock

  • 5,000 to 20,000 G - Shock Limit

Storage Temperature

  • -40° to 100° C (-40° to 212° F)

Thermal Drift

  • ± 2 mV/50° C (100° F) - Thermal Zero Shift

  • Metal-to-Metal Mechanical Shock
  • Impact Testing
  • Building Construction
  • Pile Driving
  • Weapons Testing

Documentation

Data Sheets
