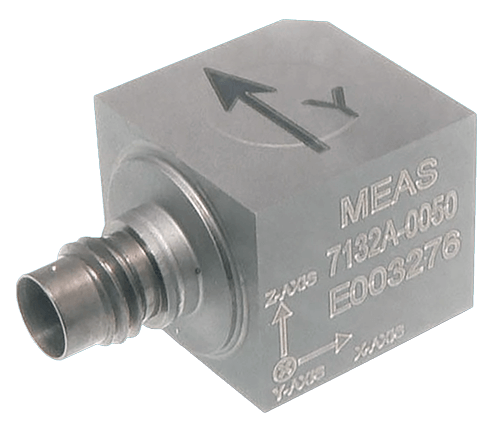

7132A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 7132A is a miniature triaxial IEPE accelerometer available in ±10 to ±2,000 g dynamic ranges.
The accelerometer features a hermetically sealed titanium construction with a 4-pin Microtech connector interface. The model 7132A incorporates stable piezo-ceramic crystals in annular shear mode which provide a flat frequency response up to >12 kHz. The model 7132B offers identical performance with an integral cable option.
Features- -55° to 125°C Operating Range
- Wide Bandwidth up to 12 kHz
- Adhesive Mounting
- Miniature Triaxial
- Annular Shear Mode Crystals
- Stable Temperature Response
1 - 12 of 40 Part Numbers
7132A-0010
- Connection Type - 4-Pin Microtech Connector
- Range - ± 10 G
- Electrical Connection - No Electrical Connections
7132A-0010-01
- Connection Type - 4-Pin Microtech Connector
- Range - ± 10 G
- Electrical Connection - M5 x 0.86 g
7132A-0010-02
- Connection Type - 4-Pin Microtech Connector
- Range - ± 10 G
- Electrical Connection - 10-32 UNF-2B
7132A-0010-03
- Connection Type - 4-Pin Microtech Connector
- Range - ± 10 G
- Electrical Connection - Case Isolated
7132A-0050
- Connection Type - 4-Pin Microtech Connector
- Range - ± 50 G
- Electrical Connection - No Electrical Connections
7132A-0050-01
- Connection Type - 4-Pin Microtech Connector
- Range - ± 50 G
- Electrical Connection - M5 x 0.86 g
7132A-0050-02
- Connection Type - 4-Pin Microtech Connector
- Range - ± 50 G
- Electrical Connection - 10-32 UNF-2B
7132A-0050-03
- Connection Type - 4-Pin Microtech Connector
- Range - ± 50 G
- Electrical Connection - Case Isolated
7132A-0100
- Connection Type - 4-Pin Microtech Connector
- Range - ± 100 G
- Electrical Connection - No Electrical Connections
7132A-0100-01
- Connection Type - 4-Pin Microtech Connector
- Range - ± 100 G
- Electrical Connection - M5 x 0.86 g
7132A-0100-02
- Connection Type - 4-Pin Microtech Connector
- Range - ± 100 G
- Electrical Connection - 10-32 UNF-2B
7132A-0100-03
- Connection Type - 4-Pin Microtech Connector
- Range - ± 100 G
- Electrical Connection - Case Isolated
1 - 12 of 40 Part Numbers
Specifications
Approvals & Certifications
- CE
- RoHS
Current
- 2-10 mA - Excitation Current
Electrical Connectors
- 4 x 28 AWG Conductors, Braided Shield, TPE Jacket - 7132B
- 4-Pin Receptacle - 7132A
Enclosure, Body Material
- Titanium
Frequency
- 0.4 to 12,000 Hz
Materials of Construction
- Ceramic - Sensing Element
Mounting
- Adhesive
- Stud Mount
NACE & NIST
- NIST Traceable Amplitude Calibration from 20 Hz to ± 2 dB Frequency Response Limit
Non-Linearity
- ± 1 % of Full Scale Output
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output
- ± 5 V - Full Scale Output Voltage
- 18-30 Vdc - Compliance Voltage
Output Load
- < 100 ohms - Output Impedance
Output Noise
- 0.0003 to 0.0025 G RMS - Residual Noise
Response Time
- Discharge Time Constant: 0.8 to 1.2 seconds
Sensitivity
- < 5 % - Transverse Sensitivity
- 2.5-500 mV/g
Shock
- 5,000 G - Shock Limit
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Supply Voltage
- 6-13 Vdc - Bias Voltage
- General-purpose Usage
- High Frequency Applications
- Laboratory Testing
- Modal Applications
- Stress Screening
- Vibration & Shock Monitoring
