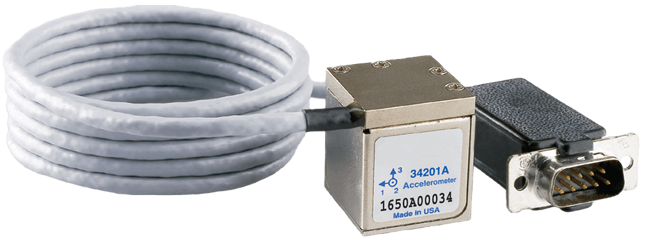

34201A Plug & Play Accelerometer

Brand: American Sensor Technologies Inc

The 34201A accelerometer has each mutually orthogonal axis precisely aligned, typically within ±0.15 degree of the theoretical ideal.

This provides the accuracy required by most measurement applications without any compensation. Critical applications requiring higher accuracy can use the alignment data provided on the optional calibration certificate to compensate for any small residual error.

Choose the bandwidth and range options best suited for your application to measure ±1g, ±1.5g or ±2g accelerations on each of three axes. Each axial sensor has been tested over the -40° to 85° C temperature range and has has a nominal full scale output swing of ±2 volts.

The zero g output level is nominally +2.5 volts and temperature compensated over the range of -40° to 85° C. Precise values for each axis are available on the included calibration certificate.

1 - 12 of 30 Part Numbers
34201A-R001-B031-T004
34201A-R001-B031-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 31 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B066-T004
34201A-R001-B066-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 66 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B094-T004
34201A-R001-B094-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 94 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B142-T004
34201A-R001-B142-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 142 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B1K4-T004
34201A-R001-B1K4-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 1,400 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B208-T004
34201A-R001-B208-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 208 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B2K1-T004
34201A-R001-B2K1-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 2,100 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B380-T004
34201A-R001-B380-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 380 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B6.6-T004
34201A-R001-B6.6-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 6.6 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R001-B944-T004
34201A-R001-B944-T004
  • Range - ± 1 G
  • Bandwidth - 0 to 944 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R002-B031-T004
34201A-R002-B031-T004
  • Range - ± 2 G
  • Bandwidth - 0 to 31 Hz
  • Termination - 4 Feet Cable with DB9M
34201A-R002-B066-T004
34201A-R002-B066-T004
  • Range - ± 2 G
  • Bandwidth - 0 to 66 Hz
  • Termination - 4 Feet Cable with DB9M
1 - 12 of 30 Part Numbers

Specifications

Accuracy

  • ± 0.2 % of Full Scale Reading - Non-Linearity
  • ± 1.25 % of Full Scale Reading - Non-Linearity

Frequency

  • 0 to 2,100 Hz - Frequency Response

Input

  • 13 mA - Input Current
  • -20-36 V - Input Voltage Limits
  • 8.5-36 V - Input Voltage - Operating

Materials of Construction

  • Aluminum - Nickel-Plated

Mounting

  • Mounting Hole

Output

  • ± 2 Vdc - Full Scale Output Voltage
  • 0.50-4.50 V at > 1 megaohms - Output Voltage Swing
  • 0.55 - 4.8 V at > 1 megaohms Load - Output Voltage Swing

Output Noise

  • 110 µg/√Hz - Noise Density

Resistance

  • 5 kiloohms - Self Test Pull-Up Resistor

Resolution

  • 100 μg

Sensitivity

  • 0.25 % - Transverse Sensitivity
  • 1,000 mV/g
  • 6.45 mV/°C

Shock

  • ± 3,500 G

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Thermal Drift

  • ± 0.3 % at 25° C - Sensitivity
  • ± 2 mg at < 1.25° cycles/min - Zero G Bias Level

Zero Offset

  • 2.5 ± 0.010 V - Zero G Bias Level
