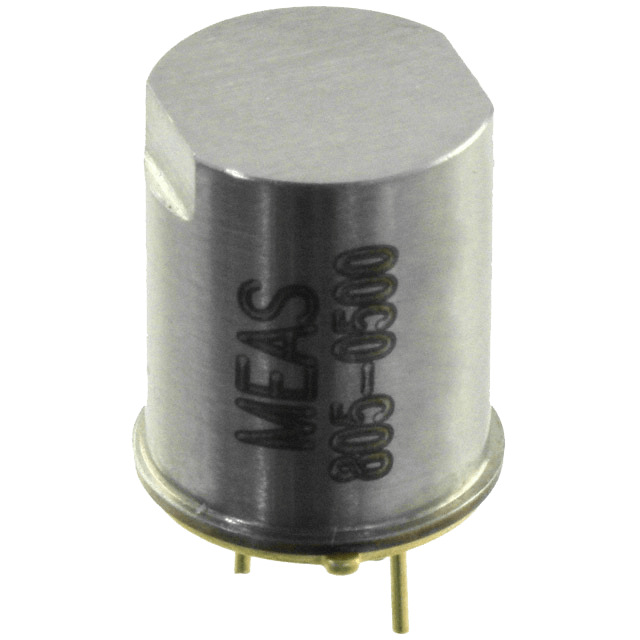

805 Embedded Accelerometer
Brand: American Sensor Technologies Inc
The Model 805 is a miniature adhesive mount IEPE accelerometer built on a 3-pin TO-5 header.
It is available in ±50g and ±500g dynamic ranges and offers a flat frequency response to 15 kHz. The accelerometer features a hermetic construction in a TO-5 header configuration.
The model 805 incorporates a stable piezoceramic crystal and an integrated charge converter amplifier in a 100% shielded housing suitable for many embedded OEM applications.
Features- ±50g and ±500g Range
- Wide bandwidth up to 15kHz
- TO-5 Configuration
- Hermetically Sealed
- -40°C to +100°C Operating Range
- Case Grounded Design
Specifications
Accuracy
- ± 1 % of Full Scale - Non-Linearity
Approvals & Certifications
- CE
- RoHS
Current
- 2 to 10 mA - Excitation Current
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 18-30 Vdc - Compliance Voltage
Frequency
- 0.3 to 12,000 Hz (± 3 dB) - Frequency Response
- 1 to 8,000 Hz (± 1 dB) - Frequency Response
- 34,000 Hz - Natural Frequency
Load Impedance
- < 100 ohms - Output Impedance
Metric Connection
- M3 x 0.5 mm Male
Mounting
- Adhesive
- M3 Stud Mounting (Circuit Board)
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -40° to 100° C (-40° to 212° F)
Output
- ± 5 V - Full Scale Output
Output Noise
- 0.0004 to 0.0009 G RMS
Sensitivity
- 10 to 100 mV/g
- 5 % - Transverse Sensitivity
Sensor, Probe Type
- Piezoresistive Ceramic Cell
Shock
- 5,000 G
Storage Temperature
- -54° to 125° C (-65° to 257° F)
Supply Voltage
- 6-13 Vdc - Bias Voltage
Temperature Effect
- ± 10 % - Temperature Response
- Machine Monitoring
- Low-Cost OEM Installation
- Permanent Structural Study
- Embedded Sensing Solution
