AST Media Isolated mV Output Pressure Sensor, 86VC

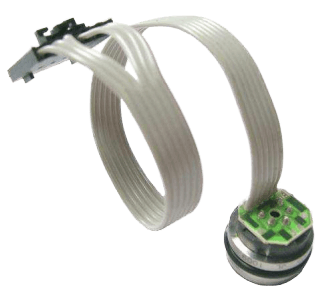

86VC Media Isolated mV Output Pressure Sensor

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The 86 Vacuum Gauge is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.

The 86 vacuum gauge is designed for O-ring mounting and OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.

A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction. An additional laser trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%.
Features
  • O-Ring Mount
  • -40ºC to 125ºC Operating Temperature Range
  • Up to ±0.1% Pressure Non Linearity
  • 1.0% Interchangeable Span (provided by gain set resistor)
  • Solid State Reliability

View_Details

Specifications

Brand

Ambient Temperature Range

  • 25° C (77° F)

Applications

  • Fresh & Waste Water Measurements
  • Medical Equipment
  • Partial Vacuum Gas Measurement
  • Pressure Transmitter
  • Process Control
  • Tank Level Systems (RV & Industrial)

Approvals & Certifications

  • RoHS

Compensated Temperature

  • -20° to 85° C (-4° to 185° F)

Diaphragm Material

  • 316L Stainless Steel

Hysteresis

  • ± 0.05 % of Span - Pressure Hysteresis
  • ± 0.25 % of Span - Thermal Hysteresis: Span & Offset

Insulation Resistance

  • 50 MΩ at 50 Vdc

Linearization

  • ± 0.2 % of Span - Pressure Non-Linearity

Media

  • Liquids & Gases Compatible with 316L Stainless Steel

Mounting

  • O-Ring

Operating Temperature

  • -40° to 125° C (-40° to 257° F)

Output

  • ± 1.0 mV - Zero Pressure Output

Output Load

  • 5 MΩ

Output Noise

  • 1 µV Peak-to-Peak

Power Requirement

  • 0.5-2 mA

Pressure Range

  • psi: 0 to 500 (kPa: 0 to 3,447, bar: 0 to 34.47)

Pressure Type

  • Vacuum Gage

Repeatability

  • ± 0.02 % of Span

Resistance

  • 2,000 to 5,800 ohms - Input Resistance
  • 4,000 to 6,000 ohms - Output Resistance

Response Time

  • 0.1 ms

Sensor, Probe Material

  • 316L Stainless Steel

Sensor, Probe Type

  • Piezoresistive

Span Effect

  • 75-150 mV

Stability

  • ± 0.10 % of Span/Year - Long Term Stability: Span & Offset

Storage Temperature

  • -40° to 125° C (-40° to 250° F)
