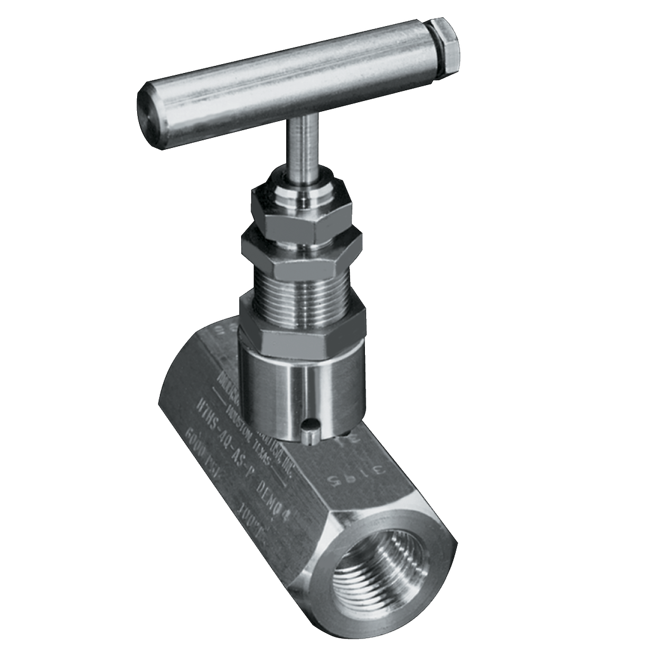

Anderson Greenwood H7HP Hand Valves
Brand: Anderson Greenwood by Emerson3/16” (4.8 mm) orifice hard seated hand valve to ASME B31.1 or B31.3 that meets MSS-SP-105.
Features- Graphite stem packing for high-temperature service.
- Free-swivelling SS ball stem prevents seating surface damage, ensures perfect alignment and bubble-tight shutoff.
- One-piece handle assembly prevents loss due to vibration or maintenance.
- Rolled stem threads prevent galling and extend valve life. Stem is polished to a mirror finish to minimize packing wear.
- Back seat design provides secondary stem seal and prevents accidental stem blowout under pressure.
- Full pressure and temperature range up to ASME Class 2500.
- Patented bonnet lock prevents accidental loosening of the bonnet-to-body seal and allows panel mounting without additional parts.
- Metal-to-metal bonnet-to-body seal in constant compression prevents bonnet thread corrosion, eliminates possible tensile breakage and provides a reliable seal point.
- Repairable metal seat can be resurfaced, when not under pressure, without removing the valve from the line.
- Materials of construction designed to meet ASME B31.1 or B31.3.
- Range of optional end connections.
