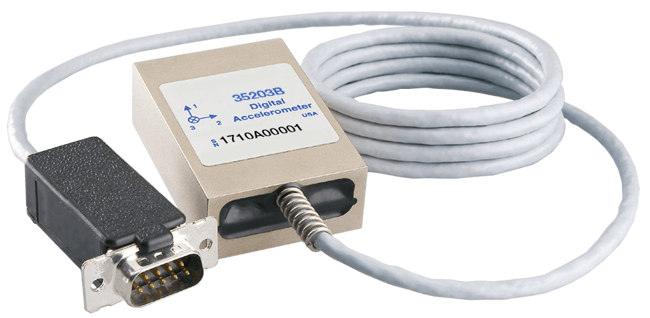

15203B, 25203B, 35203B Plug & Play Accelerometer
Brand: American Sensor Technologies IncThese digital accelerometers are complete, easy-to-use, user configurable sensors containing one to three accelerometers, a temperature sensor, signal processor, RS-485 interface and three Analog outputs in a small, easy to install package.
All channels are sampled simultaneously to avoid data skewing. The digital signal processor takes 16-bit samples, filters, ranges, and calibration compensates at up to 42,500 samples/sec/channel. Digital data can be streamed out at up to 3 Mbit/sec.
The output range, filter frequency and calibration of each channel, as well as telemetry configuration, can be set by the user via the RS-485 command processor. CRC-8 and CRC-16 error checking is used to ensure command and data integrity.
The built-in temperature sensor can be used by critical applications to correct for any residual temperature effects.
Specifications
Accuracy
- ± 2.0
- 0.1 % of Full Scale Reading - Non-Linearity
Constant Acceleration
- ± 1 to ± 15 G
Electrical Connectors
- 3 x AWG 24
Enclosure, Body Material
- Nickel-Plated Aluminum
Excitation Voltage
- 8.5-36 V
Frequency
- 0 to 800 Hz
- 15000 Hz - Sensor Scan Rate
Input
- 50 mA
Input Impedance
- 130 ohms
Mounting
- Screw Mount
Output
- ± 2 Vdc - Full Scale Output Voltage
- 0.50-4.50 V - Voltage Swing
Output Noise
- 120 µg/√Hz
Resolution
- 0.25° C
Sensitivity
- ± 0.65 % - Sensitivity Drift
- 0.25 % - Transverse Sensitivity
Shock
- ± 1500 G - Shock Survival
Supply Voltage
- ± 80 V - Input Voltage
- 8.5-36 V - Input Voltage - Operating
Temperature Range
- -40° to 85° C (-40° to 185° F)
Vibration
- MIL-STD-704A
