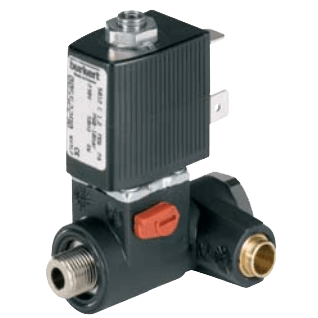

6012P 3/2-Way Mini Solenoid Valve

Brand: Burkert Fluid Control Systems

Type 6012P was developed as a special pilot valve for direct attachment to externally piloted pneumatic actuators.

It consists of the solenoid actuator of Type 6012 and a special connection housing with banjo bolts for simple connection to the pilot air port of the actuator.

The valve is equipped with manual override as standard.
Features
  • Direct-acting
  • psi: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10)
  • DN 1.2
  • G1/8", G1/4" and tube fitting Ø0.236" (6 mm), banjo-bolt connection
  • 0.826" (21 mm) coil spacing when mounted on manifold

1 - 12 of 40 Part Numbers
425 285
425 285
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/4"
  • Voltage / Frequency - 24 Vdc
425 286
425 286
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/4"
  • Voltage / Frequency - 24 V, 50 Hz
425 290
425 290
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/4"
  • Voltage / Frequency - 230 V / 50 Hz
425 299
425 299
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/8"
  • Voltage / Frequency - 24 Vdc
425 300
425 300
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/8"
  • Voltage / Frequency - 24 V, 50 Hz
425 304
425 304
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/8"
  • Voltage / Frequency - 230 V / 50 Hz
427 919
427 919
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - G 1/4" / G 1/4"
  • Voltage / Frequency - 24 Vdc
427 920
427 920
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - G 1/4" / G 1/4"
  • Voltage / Frequency - 24 V, 50 Hz
427 921
427 921
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - G 1/4" / G 1/4"
  • Voltage / Frequency - 110 V / 50 Hz
427 922
427 922
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - G 1/4" / G 1/4"
  • Voltage / Frequency - 230 V / 50 Hz
428 569
428 569
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/4"
  • Voltage / Frequency - 110 V / 50 Hz
428 570
428 570
  • Model - Pilot Valve for Direct Mounting onto Pneumatic Actuator with Coil Connection According to DIN EN 175301-803 Form C for Cable Plug Type 2506
  • Pressure Inlet P (Valve Body) / Service Port A (Banjo Bolt) - Tube Fitting Ø 6 mm / G 1/8"
  • Voltage / Frequency - 110 V / 50 Hz
1 - 12 of 40 Part Numbers

Specifications

Ambient Temperature Range

  • -10° to 40° C (14° to 104° F)

BSP Connection

  • G 1/4” Female
  • G 1/8” Female

Cable Material

  • Cable Plug: Polyamide (PA)

Consumption

  • Power Consumption (Hold): 6 VA (4 W)
  • Power Consumption (Inrush): 4 W
  • Power Consumption (Inrush): 9 VA

Duty Cycle

  • Duty Cycle / Single Valve for Block Assembly on Multiple Manifold: 100 % Continuous Rating Intermittent Operation 60 % (30 minutes) with 2 W Coil 100 %

Electrical Connectors

  • According to DIN 43650 Form B (Industrial Standard) for Cable Plug Typical 2507
  • According to DIN EN 175301-803 Form C for Cable Plug Typical 2506

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure, Body Material

  • Polyamide (PA)

Environmental Protection

  • IP65 with Cable Plug

Flow Rate

  • Water: 0.045 to 0.060 Kv (m³/hour)

Materials of Construction

  • Coil (DIN EN 175301-803) Form B (Industrial Standard): Epoxy
  • Coil (DIN EN 175301-803) Form C: Polyamide (PA)
  • Guide Tube: 305 Stainless Steel, 1.4303
  • Stopper, Core: 430FR Stainless Steel (1.4105)
  • Sub-Base: Nickel-Plated Surface - Stainless Steel Version
  • Sub-Base: Zinc Surface (Zn3 Gl CC) - Brass Version

Media

  • Neutral Gases (Compressed Air)

Mounting

  • Manifold

Mounting Position

  • Preferably with Actuator Upright

Nut & Bolt Material

  • Banjo Bolt: Nickel-Plated Brass

O-Ring Material

  • FKM

Operating Voltages

  • 24 Vdc
  • 24-230 V / 50 Hz

Orifice Size

  • 0.047” (1.2 mm)

Override

  • Manual Override

Power

  • Coil Power (AC or DC): 4 W

Pressure Range

  • psi: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10)

Process Temperature

  • -10° to 60° C (14° to 140° F)

Response Time

  • Closing: 9 to 12 milliseconds (Pressure Relief 100 to 10 %)
  • Opening: 7 to 12 milliseconds (Pressure Build-Up 0 to 90 %)

Ring Material

  • Shading Ring: Copper
  • Shading Ring: Silver

Seat / Seal Material

  • Armature Seal: FKM
  • Flat Seal: NBR

Solenoid Type

  • 3/2-Way

Spring Material

  • 301 Stainless Steel, 1.4310

Tolerance

  • Voltage Tolerance: ± 10 %

Tube Connection

  • Ø 6 mm Tube Fitting
