M4 Knick Retractable Holder, CSR 225

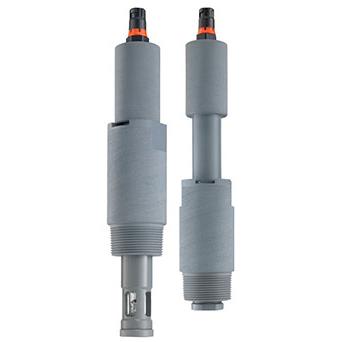

CSR 225 Retractable Holder

Brand: M4 Knick
Add Product to My Catalog

The CSR 225 offers quick and easy insertion and retraction of the sensor without the interruption of the process.

By means of a quarter turn and actuation of the locking pin, the sensor is inserted into the process or extracted for safe removal. Ideal for low pressure applications and replacement of existing static holders.
Features
  • Lightweight, compact design
  • Low cost, simple installation, operation, and maintenance
  • Fast and simple disassembly for seal replacement
  • Ball valve isolation not required
  • Accepts standard 12mm x 225mm sensors

Specifications

Brand

Mounting Options

  • 1-1/2" MNPT (1" MNPT for stainless version only)

Sensor Details

  • 12 mm x 225 mm PG13.5 threads

Material of Construction

  • CPVC, PVDF, 316 Stainless Steel

Operating Pressure Range

  • 316 Stainless Steel: 150 psi (10.34 bar)
  • CPVC: 50 psi (3.45 bar)
  • PVDF: 50 psi (3.45 bar)

Operating Temperature Range

  • 316 Stainless Steel: 23° to 248° F (-5° to 120° C)
  • CPVC: 23° to 176° F (-5° to 80° C)
  • PVDF: 23° to 212° F (-5° to 100° C)

Sealing Materials

  • Viton (Standard), Kalrez 6375 (Upon Request)

Insertion Lengths

  • 2.75" (CVPC and PVDF Versions)
  • 2.65" (316 Stainless Steel Version)
