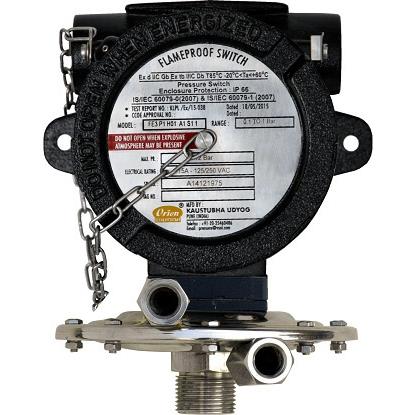

FE Series Low ΔP High Proof Pressure Difference Switch
Brand: Orion InstrumentsThese switches have been designed for use in hazardous area and for severe applications in the oil and gas sectors like oil and gas pipelines, petrochemical plants, refineries and generally in atmospheres which are potentially explosive.
All switches are designed for gas group IIC, the most severe of the explosive gases, and hence can be used in lower severity atmospheres, typically in IIA and IIB.
With grey cat iron enclosures, these can also be used in mines.
SS enclosures can also be offered for highly corrosive atmospheres.
Switches can be configured with a lot of options like electrical elements and sensing element configurations to suit the intended working media.
Features- Compact, rugged design
- Enclosure protection: IP66 standard
- Reliable, accurate micro switch used
- Customized micro switch arrangement can be provided, on request
- Easy, safe wiring connections
- High/low pressure options available
- Accuracy: ±1% Full Scale, ±2% Full Scale
- Double diaphragm seal
- Cost effective
- Certifications & Approvals for Indian Market - KPKL, PESO
Specifications
Brand
Accuracy
- ± 1 % of Full Scale Range
- ± 2 % of Full Scale Range
Applications
- Bulk Drug & Pharma
- Chemical Industry
- Oil & Gas
- Petrochemical Plants
- Refineries
Approvals & Certifications
- IS/IEC 60079-1: 2007, IS/IC 60079-0: 2011, 60079-1: 2007 & 60079-31: 2008
- KLPL
- PESO
BSP Connection
- 1/4” BSP Female
Cable Entry
- 1/2” NPT Female
- 3/4” NPT Female
- M20 x 1.5 Female
Diaphragm Material
- Neoprene
- Teflon
Differential Pressure
- Inches WC: 2.007 to 14.05
- psi: 0.073 to 0.508 (mbar: 5 to 35, kPa: 0.5 to 3.5) - Max.
Electrical Rating
- Microswitch: 15 A at 250 Vac
- Microswitch: 5 A at 250 Vac
Enclosure, Body Material
- Aluminum, Grade LM6
- Grey Cast Iron
- Stainless Steel
Environmental Protection
- Flameproof
- IP66 According to II 2 GD Ex d IIC Gb Ex Tb IIIC Db T85° C (-20°< Ta< 60° C), IS/IEC 60079-1: 2007, EN 60079-0: 2009, EN 60079-31: 2009)
Head Material
- Aluminum
- Grey Cast Iron
- Stainless Steel
Mounting
- 2 Mounting Holes
NPT Connection
- 1/4” NPT Female
Operating Pressure
- Maximum
Operating Temperature
- Operating Ambient Temperature: 0° to 60° C (32° to 140° F)
Pressure Type
- Differential
Process Connection Material
- High Pressure Port: 316 Stainless Steel
Process Temperature
- Media Temperature: for Non-Metallic Diaphragm, Max.
Repeatability
- ± 1 % of Full Scale
Set Point - Decreasing
- Inches WC: 2.007 to 140.52
- kPa: 0.5 to 35
- mbar: 5 to 350
- psi: 0.07 to 5.07
Set Point - Increasing
- Inches WC: 2.007 to 140.52
- kPa: 0.5 to 35
- mbar: 5 to 350
- psi: 0.07 to 5.07
Switch Quantity
- SPDT: 2 Switches
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 0 to 110
- kPa: 0 to 11,000
- psi: 0 to 1,595
