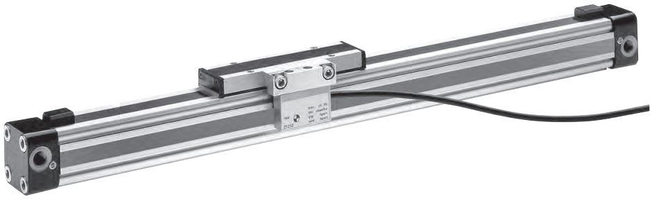

OSP-P Series Sensoflex

Brand: Parker ORIGA Corporation
Add Product to My Catalog

The sensing head provides two pulsating, 90° out of phase counter signals (phase A/B) with a 0.4 mm resolution (option 4 mm).

External processing can improve the resolution to 0.1 mm (option 1 mm).

The counting direction can be determined automatically from the phase variance of the counter signals.
Features
  • Contactless magnetic displacement measurement system
  • Displacement length up to 5.5 m
  • Resolution 0.1 mm (option: 1 mm)
  • Displacement speed up to 10 m/s
  • For linear and non-linear rotary motion
  • Suitable for almost any control or display unit with a counter input

1 - 11 of 11 Part Numbers
21210FIL
21210FIL
PARKER ORIGA Sensing Head - Resolution 0.1 mm (Spare Part)
21211FIL
21211FIL
PARKER ORIGA Option: Sensing Head - Resolution 1 mm (Spare Part)
21213FIL
21213FIL
PARKER ORIGA Mounting Kit for OSP-P25
21214FIL
21214FIL
PARKER ORIGA Mounting Kit for OSP-P32
21215FIL
21215FIL
PARKER ORIGA Mounting Kit for OSP-P40
21216FIL
21216FIL
PARKER ORIGA Mounting Kit for OSP-P50
21217FIL
21217FIL
PARKER ORIGA Mounting Kit for OSP-P63
21218FIL
21218FIL
PARKER ORIGA Mounting Kit for OSP-P80
21235FIL
21235FIL
PARKER ORIGA Measuring Scale Per Meter (Spare Part)
21240x(stroke)
21240x(stroke)
PARKER ORIGA Sensing Head with Measuring Scale - Resolution 0.1 mm (Scale Length = Required Measuring Distance + a Minimum of - See Table Below)
21241x(stroke)
21241x(stroke)
PARKER ORIGA Option: Sensing Head with Measuring Scale - Resolution 1 mm (Scale Length = Required Measuring Distance + a Minimum of - See Table Below)
1 - 11 of 11 Part Numbers

View_Details

Specifications

Brand

Resolution

  • 0.1 mm
  • 1 mm

Pole Lengths Magnetic Scale

  • 5 mm

Maximum Speed

  • 10 m/s

Repeat Accuracy

  • ± 1 Increment

Distance Between Sensor & Scale

  • ≤ 4 mm

Tangential Deviation

  • ≤ 5°

Lateral Deviation

  • ≤ ± 1.5 mm

Switching Output

  • PNP

Operating Voltage Ub

  • 18-30 Vdc

Voltage Drop

  • ≤ 2 V

Continuous Current for Each Output

  • ≤ 20 mA

Power Consumption at Ub = 24 V, Switched On, without Load

  • ≤ 50 mA

Short-Circuit Protection

  • Yes

Reverse Polarity Protection

  • Yes

Protection from Inductive Load

  • Yes

Power-up Pulse Suppression

  • Yes

Electrostatic Discharge Immunity

  • 6, B, to EN 61000-4-2 kV

Electromagnetic Field Immunity

  • 10, A, to EN 61000-4-3 V/m

Electrical Fast Transient / Burst Immunity (For Signal Connections)

  • 1, B, to EN 61000-4-4 kV

Electrical Fast Transient / Burst Immunity (For DC Connections)

  • 2, B, to EN 61000-4-4 kV

Surge Immunity (For Signal Connections)

  • 1, B, to EN 61000-4-5 kV

Surge Immunity (For DC Connections)

  • 0,5, B, to EN 61000-4-5 kV

Immunity to Conducted Disturbances

  • 10, A, to EN 61000-4-6 V

Power Frequency Magnetic Field Immunity at 50 Hz

  • 30, A, to EN 61000-4-8 A/m

Emission Standard for Residential

  • To EN 61000-6-4

Radio Disturbance Characteristics

  • To EN 55011, Group 1, A

Housing

  • Aluminum

Cable Length

  • 5.0 m - fixed, open end

Cable Cross Section

  • 4 x 0.14 mm²

Cable Type

  • PUR, Black

Bending Radius

  • ≥ 36 mm

Weigh (mass)

  • ca. 0.165 kg

Degree of Protection

  • IP67 to EN 60529

Ambient Temperature Range

  • -25° to 80° C

Broadband Random Vibration to EN 60068-2-64

  • 5 g, 5 Hz to 2 kHz, 0.5 h each axis

Vibration Stress to EN 60068-2-6

  • 12 g, 10 Hz to 2 kHz, 2 mm, 5 h each axis

Shock to EN 60068-2-27

  • 100 g, 6 ms, 50 bumps each axis

Bump to EN 60068-2-29

  • 5 g, 2 ms, 8000 bumps each axis

Dead Length

  • OSP-P 25: 154
  • OSP-P 32: 196
  • OSP-P 40: 240
  • OSP-P 50: 280
  • OSP-P 63: 350
  • OSP-P 80: 422
