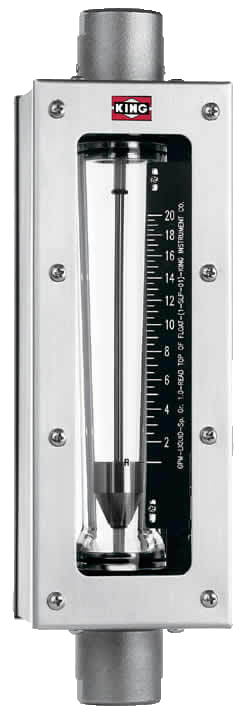

7610 Series Glass Tube Flowmeters
Brand: King Instrument Company7610 models feature fully enclosed, 127 mm scale, borosilicate glass metering tube with 304 stainless steel case. In-line 316L fittings and internals or PVC fittings with Hastelloy® C-276 internals are suitable for a variety of applications.
Features- Versatile Borosilicate Kinglass Meter
- Fully Enclosed in Stainless Steel Case
- In-Line Connections; Alarm Options
- 127mm Detachable, Direct Reading Scales
- 0.25 – 116 GPM Water; 1 – 245 SCFM Air
1 - 12 of 960 Part Numbers
761-2-2-1-0-31A
- Media Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Air Flow - 1.0 SCFM
761-2-2-1-0-31W
- Media Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Water Flow - 0.25 GPM
761-2-2-1-0-32A
- Media Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Air Flow - 1.5 SCFM
761-2-2-1-0-32W
- Media Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Water Flow - 0.36 GPM
761-2-2-1-0-33A
- Media Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Air Flow - 3.0 SCFM
761-2-2-1-0-33W
- Media Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Water Flow - 0.74 GPM
761-2-2-1-0-41A
- Media Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Air Flow - 4.2 SCFM
761-2-2-1-0-41W
- Media Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Water Flow - 1 GPM
761-2-2-1-0-43A
- Media Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Air Flow - 8.2 SCFM
761-2-2-1-0-43W
- Media Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Water Flow - 2 GPM
761-2-2-1-0-51A
- Media Type - Air
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Air Flow - 6.0 SCFM
761-2-2-1-0-51W
- Media Type - Water
- Fitting Material - 316L SS
- Float Material - 316L SS
- O-Ring Materia - EPR
- Alarm - No Alarm
- Water Flow - 1.5 GPM
1 - 12 of 960 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L Stainless Steel
- Hastelloy® C-276
Fitting Material
- 316L Stainless Steel
- PVC
Inlet/Outlet Fittings
- FNPT, vertical
O-Ring
- Viton
- Buna-N
- EPR
- Kalrez®
Case and Covers
- 304 Stainless Steel case
- Polycarbonate shield
Capacities
- Water: 0.25 to 116 GPM
- Air: 1 to 245 SCFM
Scale
- 127 mm (5") Direct reading, detachable
Accuracy
- ± 3 % of full scale flow
Turndown
- 10:1
Repeatability
- 0.5%
Maximum Temperature
- 316L Stainless Steel fittings: 200° F
- PVC fittings: 110° F
Maximum Pressure
- 316L Stainless Steel fittings: 250 psig, size 3 & 4
- 316L Stainless Steel fittings: 200 psig, size 5 & 6
- 316L Stainless Steel fittings: 150 psig, size 8 & 9
- PVC fittings: 100 psig
