Air Heater

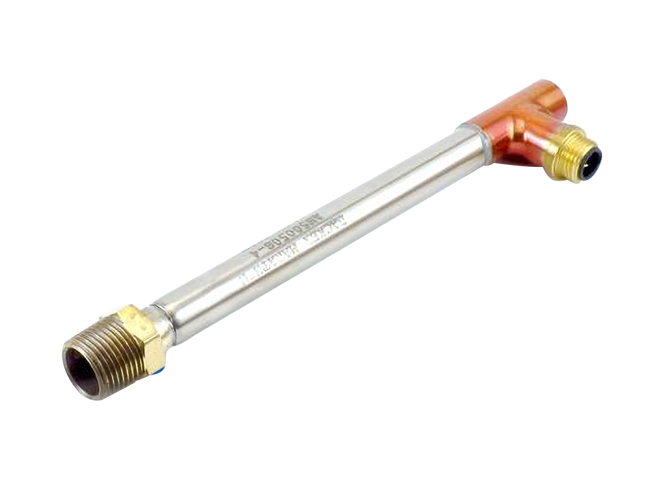

Brand: Backer Marathon IncBacker Marathon air heaters feature an open coil of high temperature resistance wire electrically isolated in a stainless steel sheath. Because the air being heated passes directly over the resistance wire, maximum heat transfer efficiency is achieved.
Backer Marathon brand air heaters are used for heat staking, plastic welding, laminating, drying, heat sealing, and any other operation where air needs to be heated up 1,000° F.
1/2” and 3/4” diameters are standard with other sizes available. Several 1/2” diameter air heaters are in stock for same day delivery.
Options such as male and female fittings for inlets and outlets, thermocouples to monitor outlet temperature, and pin connectors are available.
Features- 1/2”, 5/8” or 3/4 diameter 304 Stainless Steel Sheath
- Nickel-Chromium Coils
- High temperature leads or 3 pin connector
- Epoxy Seal
- Copper Tee
- 120 Volt and 240 Volt
Specifications
Brand
Heater Diameter
- 1/2" OD
- 3/4" OD
Lead Wire Size
- 22 ga.
- 18 ga.
Maximum Amperage
- 10 A
- 15 A
NPT Size
- 1/8” Female
- 3/8" Male
- 3/8" Female
- 3/4" Male
Maximum CFM
- 10 SCFM
- 22 SCFM
Termination
- Leads
- Plugs
Fitting
- Female 1/4" FTP on Outlet
- Male 3/8" NPT on Outlet
Material of Construction
- Sheath: 304 Stainless Steel
- Coil: Nickel-Chromium
- Seal: Epoxy
- Tee: Copper
Voltage
- 120 V
- 240 V
- Heat Staking
- Shrink Fitting
- Plastic Welding
- Laminating
- Sealing
- Drying
