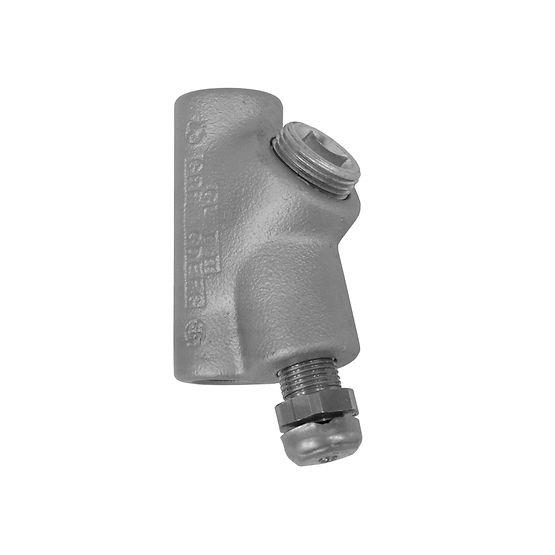

Emerson Appleton Vertical Conduit Drain Sealing Fitting, EYD

Appleton™ EYD 25% Fill Vertical Conduit Drain Sealing Fittings

Brand: Appleton
Add Product to My Catalog

Emerson Appleton Vertical Conduit Drain Sealing Fitting, EYD Emerson Appleton Vertical Conduit Drain Sealing Fitting, EYD
Appleton™ EYD 25% fill vertical conduit drain sealing fittings prevent the passage of gases, vapors or flames from one portion of a conduit system to another.

They also restrict large amounts of ignitable gases or vapors from accumulating to confine explosive pressure.

Appleton sealing fittings are explosionproof, dust-ignitionproof and raintight.

They are suitable for use in Class I and II locations.
Features
  • Explosionproof, dust-ignitionproof, raintight
  • Prevent passage of gases, vapors or flames from one portion of conduit system to another. Restrict any explosion to the sealed off enclosure. Prevent pressure piling within conduit system
  • Required in Class I, Division 1 and 2 locations within 18" of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required in Class I, Division 1 and 2 locations where 2" or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36" or less conduit. Seal must be located within 18" of either enclosure
  • Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • UL Listed for use with Kwiko™ A Sealing Compound. Also listed with certain competitors sealing cement, contact factory for details
  • Access cover has drain valve for automatic draining of water accumulation above the seal

Specifications

Brand

NEC/CEC Certifications & Compliances

  • Class I, Div. 1 & 2, Groups C, D, Class II, Div. 1 & 2, Groups E, F, G, Class III

Standard Material

  • Grayloy-Iron

Standard Finish

  • Triple-Coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat
