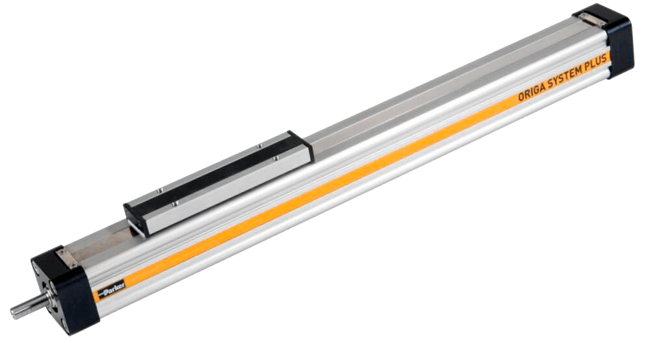

OSPE50-BHD Belt Driven, Square Rail Bearing, Rodless Linear Actuator
Brand: Parker HannifinWith an integrated square rail for high level dynamic positioning, all packaged in a super low profile IP54 rated assembly, the OSPE50-BHD offers numerous levels of configurability making it a highly flexible product. Suitable for payloads up to 12000N.
Completely modular to accommodate a broad range of installation and performance requirements. the OSPE-BHD, the most popular of the OSPE family, offers an extremely high capacity belt-driven actuator in a low profile package.
The integrated square rail bearing design captures the bearing and drive train completely within the IP54 sealed unit, and creates extensive environmental protection for the internal components.
The OSPE-BHD is optimally designed for both point to point and dynamic positioning applications, and given its extreme level of flexibility and maximized configurability it is the ideally suited for easy integration into any machine layout.
The combination of high speed, high normal loading capacity and high thrust, coupled with the extreme flexibility of the OSPE family and the low profile design, the OSPE-BHD is a belt drive which is truly optimized for any application.
Features- OSPE-BHD product family’s 4 profile widths provide thousands of standard configurations
- Integrated drive and guidance system to decrease actuator’s overall size - square rail or roller guide options (for high speed applications)
- Tandem and bi-parting carriage options
- Pre-configured motor, gearhead, and control package options for easy ordering
- Diverse range of accessories and mountings
- IP54 rated to withstand harsher application environments
- Ambient temperature range: -30°C to +80°C
- Multi-axis configurations available
Specifications
Brand
Additional Protection Option
- Steel Strip Cover
Approvals & Certifications
- Cleanroom Certified (Custom Option)
Bearing Type
- Square Rail
Corrosion Resistant Option
- No
Drive Type
- Belt
Idler Unit Option
- No
IP Protection Rating
- IP54
Linear Feedback Device
- No
Maximum Acceleration (Inch/S2)
- 1968
Maximum Acceleration (m/S2)
- 50
Maximum Payload FZ (N)
- 15000 (3704 with Roller Guide Option)
Maximum Speed (inch/sec)
- 200 (400 with Roller Guide Option)
Maximum Speed (m/sec)
- 5 (10 with Roller Guide Option)
Maximum Stroke (inch)
- 217
Maximum Stroke (mm)
- 5500
Maximum Thrust FX (Lbs)
- 701
Maximum Thrust FX (N)
- 3120
Position Repeatability (± Inch)
- 0.002
Position Repeatability (± mm)
- 0.05
Profile Width (mm)
- 175
Series
- OSP-E
Typical Payload FZ (N)
- 750 - 15000
- Pick and Place
- Palletizing
- Factory Automation
- Material Handling
- Markets:
- Industrial Manufacturing
- Food & Bev
- Automotive
- Packaging / Warehouse
- Printing
