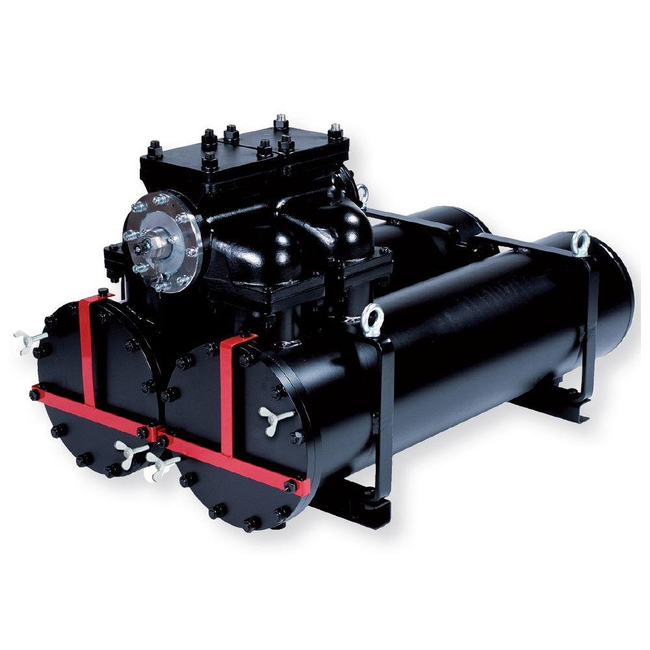

Low Pressure In-Line Duplex Filter - DFH2060 Series
Brand: Parker HannifinThe DFH2060 series is a low pressure, high flow, high performance, minimum height duplex filter for use in lubrication system applications.
It has a Slim welded housing construction with cast iron change over valve section.
The DFH2060 filter is for horizontal mounting, making assembly easier in cranked positions.
It offers several element media options for high dirt holding capacities and low pressure drops.
One reservoir can be closed for service.
The DFH2060 has 160 mm square flange connections that come with mounted blind flanges.
Maximum flow rate up to 2200 l/min. Maximum pressue 10 bar.
Specifications
Brand
Bypass Valve (bar)
- 2,0
Flow Capacity (L/min)
- 2200
Flow Rate (Lpm)
- > 2,000 Lpm
Housing Material
- Steel / Cast Iron
Mounting Style
- Inline
Options
- With Bypass
Port Connection Type
- 160 mm Square Flange & Blind Counter Flange
Pressure Rating (bar)
- 0 to 34 bar
Seal Material
- Fluorelastomer
Temperature Range (°C)
- -20° to +120° C, -20° to +160° C
- Heavy duty diesel engine lubricating systems
- High flow industrial lubricating systems
